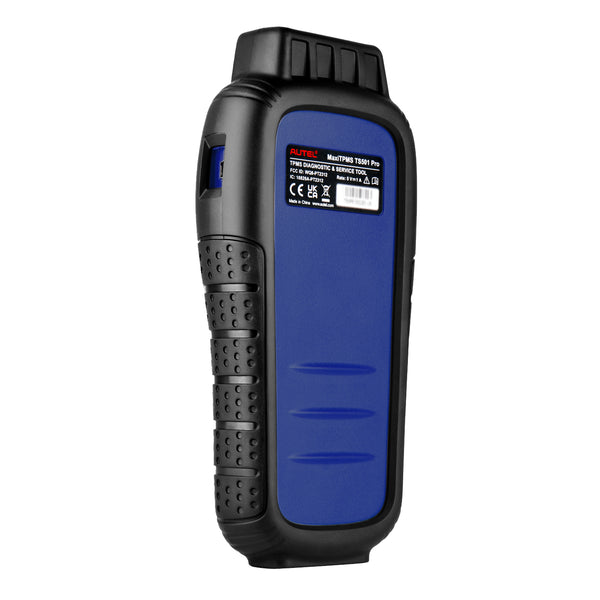

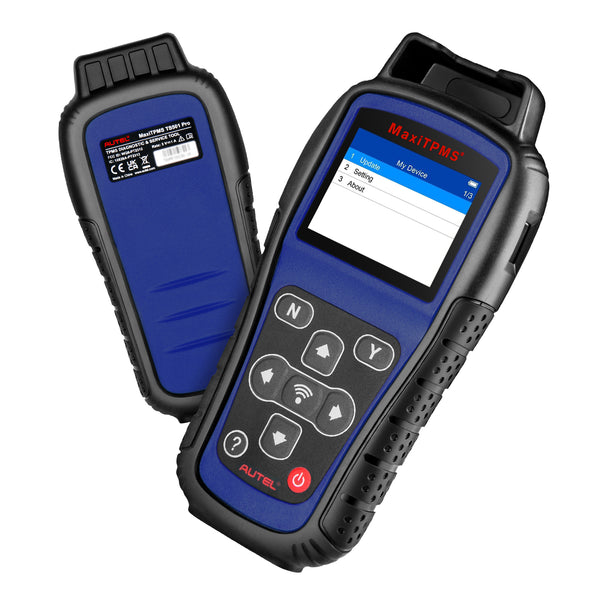

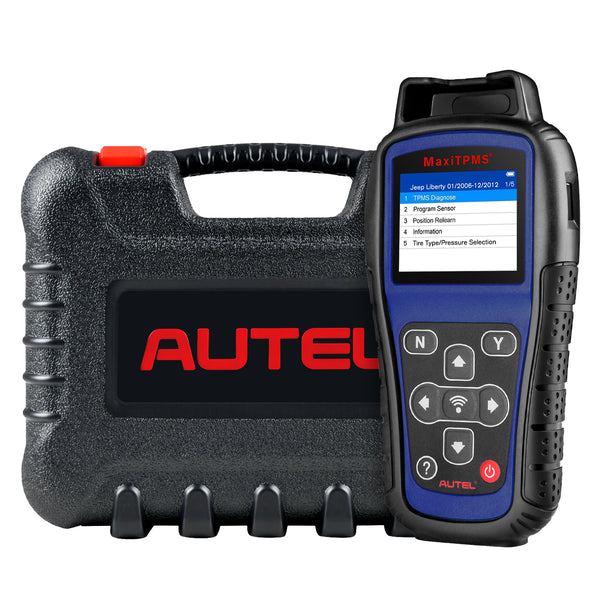

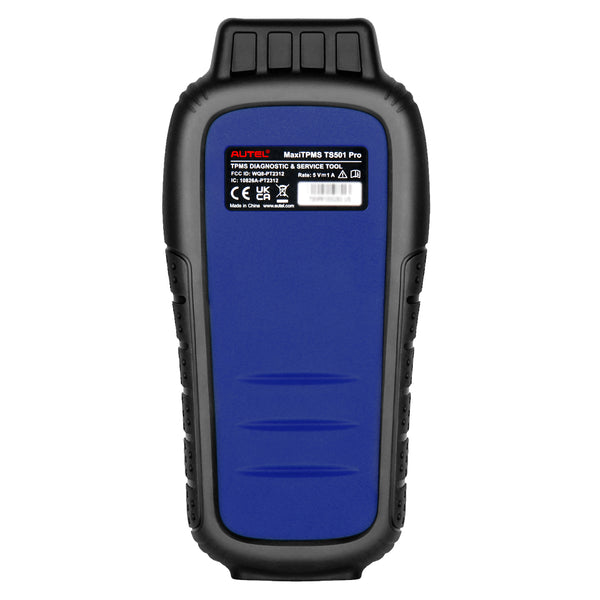

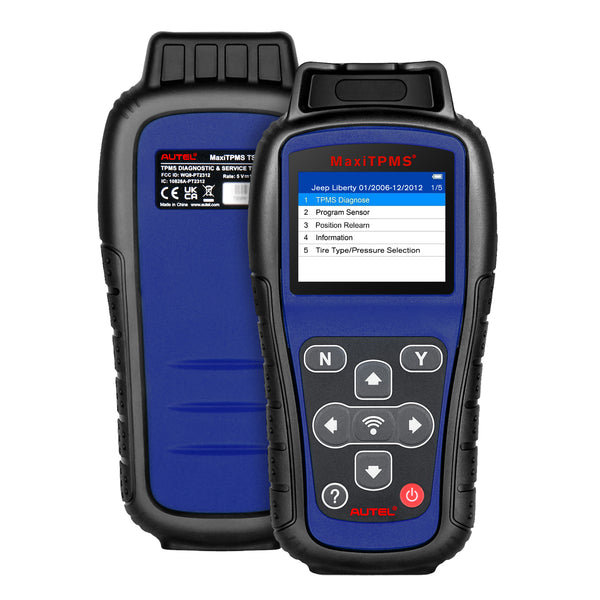

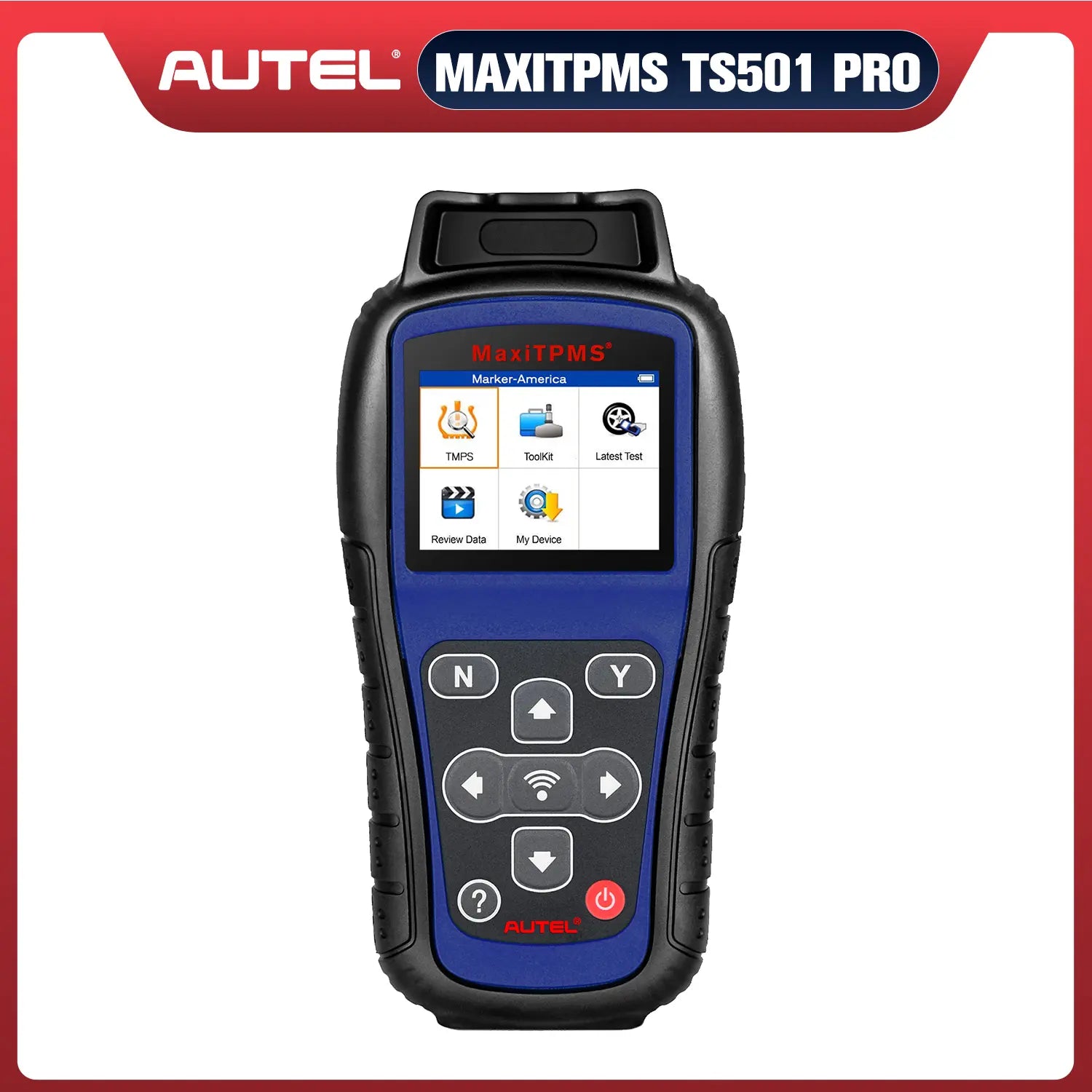

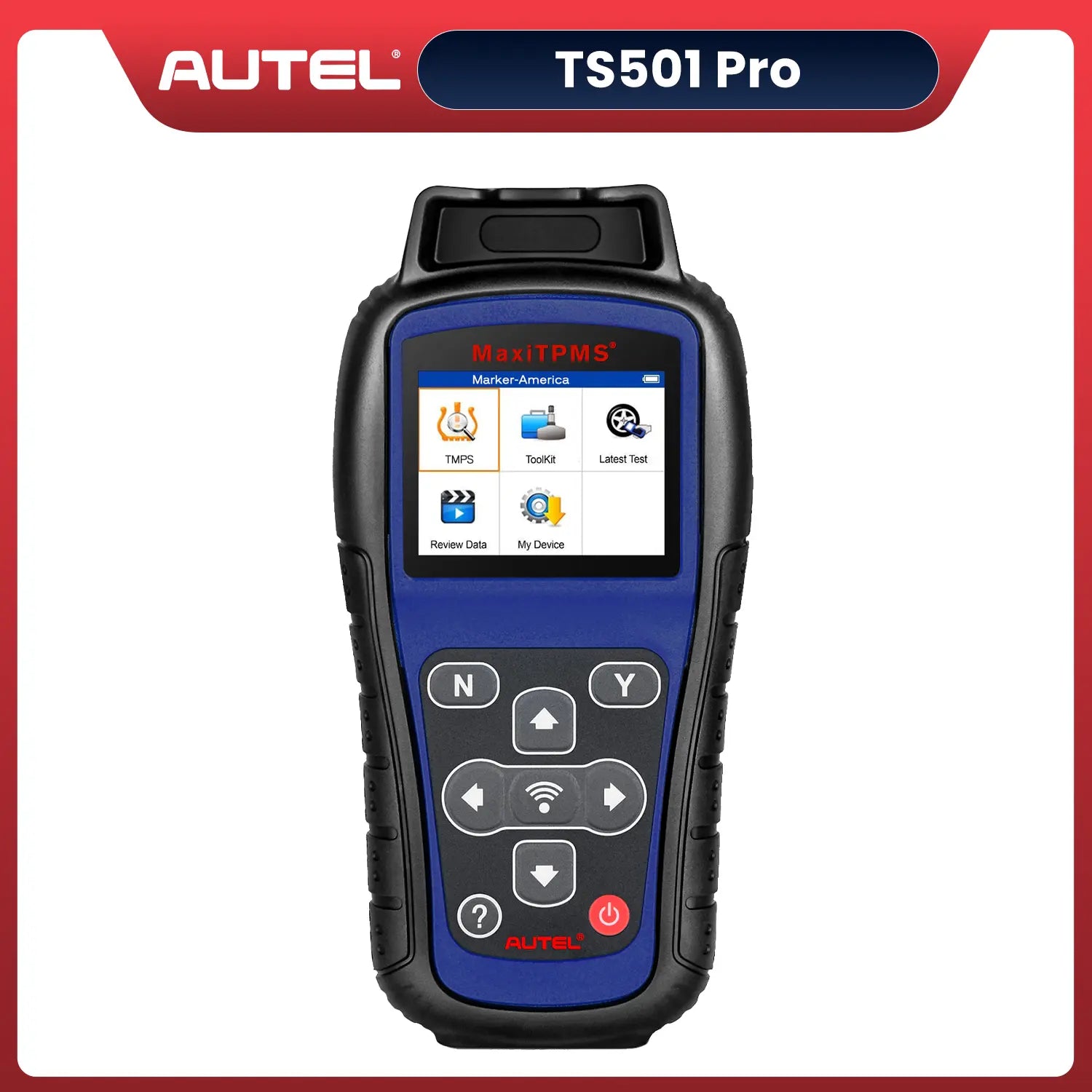

2024 Newer Autel MaxiTPMS TS501 Pro TPMS Programming Tool
As a big upgrade from old TPMS tool TS501/ TS408/ TS401, TS501 PRO TPMS Programming Tool has wider car coverage (98%➡99%) with Life-time frequent updates. It packed ALL TPMS service options: TPMS programming (only for Autel MX-Sensors), ALL known sensors Relearn/Activation, TPMS Reset and TPMS health diagnose, read sensor data, key fob frequency test, tire type/ pressure selection, etc.
![](https://cdn.shopify.com/s/files/1/0067/0574/1883/files/501Pro-1500-_2.jpg?v=1718270264)
Top 7 Reasons To Choose Autel TS501 Pro
- 2 Ways of MX-Sensors Programming
- 3 Options for TPMS Relearn
- All-brand Sensors Activation
- Tire Type/Pressure selection
- Test Key Fob Frequency
- Complete TPMS Diagnostics
- 99% of Car Models
Tire Type / Pressure Selection & Key Fob Testing
2 Options to Program Autel MX-Sensors
Autel TS501 PRO TPMS Relearn Tool enables all car enthusiasts to easily program sensor data into Autel MX-Sensors without the expense and time of a trip to the dealership. With TS501 PRO, you can program AUTEL MX-Sensor (315/ 433MHz) with 2 programming options: 1. Auto Create 1-16 sensor IDs simultaneously, with high programming efficiency (the Ave time is 6-8s/pcs); 2. Copy by OBD( Not available with TS408) to replace the faulty sensor with low battery life or one that is not functioning well.
3 Ways to Relearn All Known Sensors
Autel TPMS TS501 PRO has added a New OBD Relearn Method compared with MaxiTPMS TS401, TS408. To turn off the TPMS warning light after replacement, you need to relearn the sensors to the vehicle! Autel TS501 PRO TPMS Relearn Tool provides 3 ways of on-tool relearn precedures to relearn both OE and aftermarket sensors: Stationary Relearn, Automatic Relearn & OBD Relearn.
Activate All Known TPMS Sensors
As 2024 new generation of TPMS diagnostic & service tool, Autel TS501 Pro TPMS Reset Tool can wirelessly activate all OEM/Universal TPMS sensors on the market, enable you easily retrieve TPMS sensor data like Sensor ID, Tire Pressure, Tire Temperature, Sensor Battery, Sensor Position, Frequency, etc. Also, TS501Pro can diagnose the TPMS system through OBDII connection to read and clear codes.
Complete TPMS System Scan Tool
The Autel TS501 Pro automotive diagnostics tool offers a comprehensive solution for TPMS-related tasks. It can activate all TPMS sensors, read sensor data, conduct TPMS diagnosis, and perform a comprehensive TPMS health check, all in one step.
Additionally, it can read and clear TPMS diagnostic trouble codes (DTCs) and provides on-screen descriptions for easier understanding. The tool also allows for scanning TPMS sensor IDs and copying them into compatible MX-Sensors. Manual input of original equipment (OE) IDs into MX-Sensors is also supported.
Furthermore, the TS501 Pro has the capability to program MX-Sensors by automatically generating sensor IDs. It features a relearn by OBD function with a built-in relearn procedure guide. Lastly, the tool can check Key FOB functionality.

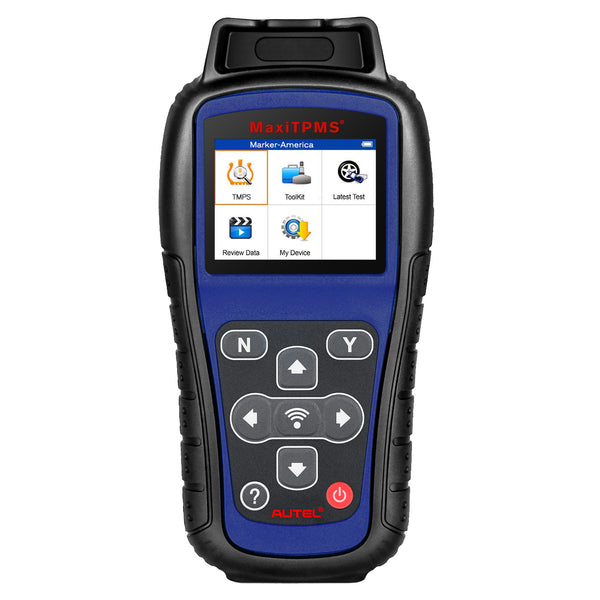

Easy To Use Software Operation
Performing basic sensor activation or complex diagnostic tool functions is easy as following the program options and on-screen display instructions. The TS501 Pro provides code definitions and visual/audio responses to make the operations much easier and more convenient to complete.
Download FREE software updates for enhanced diagnostic functions and extended vehicle coverage. Now even your old TPMS tool can perform like new!
OBDII Connected TPMS Diagnostics
The TS501 Pro can provide relearn procedures for specific sensors and connect with the OBDII cord to the vehicle's ECU to offer multiple programming options including clone sensor IDs, auto-create ID, or manual write sensor IDs with no sensor re-learn required for sensor positioning.

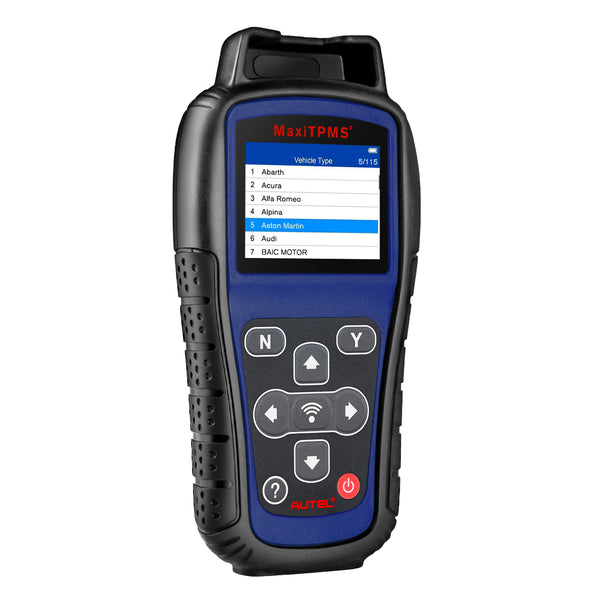

150+ Car Brands & No IP Limitations
Autel TS501 Pro supports lifetime free updates and more than 19 languages.
Autel MaxiTPMS TS501 Pro Specifiocation:
Display |
TFT color display (320 x 240 dpi) |
Power |
3.7 V Li-polymer battery; 2400mAh |
Operating Temperature |
0 to 50°C (32 to 122°F) |
Storage Temperature |
-20 to 70°C (-4 to 158°F) |
Dimensions (W x H x D) |
202.2 mm (7.96") x 106.7 mm (4.20") x 37.7 mm (1.48") |
Connectivity |
Mini USB 2.0*1 |
Weight |
0.4 kg (0.88 lb.) |
Warranty |
1 year |
Software Update |
Free |
