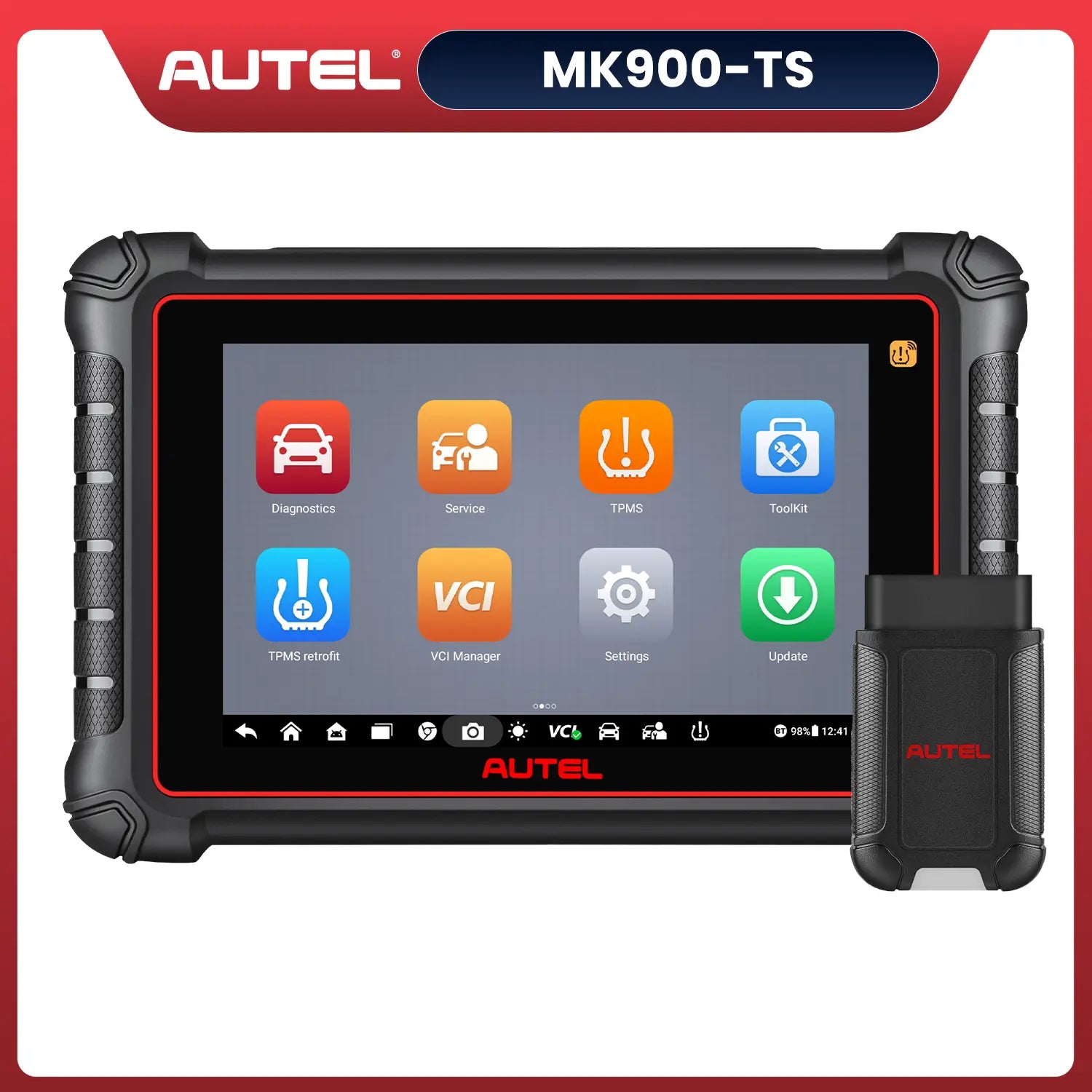

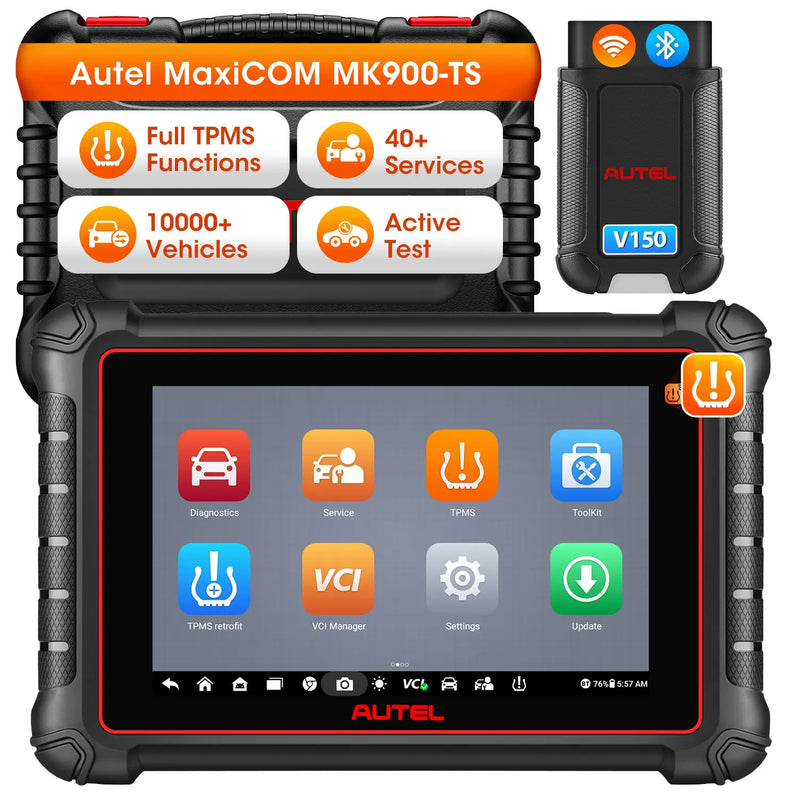

Autel MaxiCOM MK900-TS TPMS Scanner

Autel MaxiCOM MK900TS Scanner is upgraded from MK808TS / MK900TS, which is a powerful combo of TPMS Tool and Diagnostic Scan Tool. Equipped with Full TPMS and Diagnostics, it performs well both in your vehicle diagnosis and in Complete TPMS Functions. For a workshop or a mechanic, Autel MK900TS is really a good choice.

Autel MK900TS Scan Tool has Advanced Hardware, which combines Android 11, 4G & 64G of RAM & ROM, Rockchip RK3566 Processor, 2.4 & 5GHz Wi-Fi, 8-inch 1280x800 Resolution, and 7700mAh Battery. It also comes with new features, including: V150 instead of VCI Mini, Scan VIN, Scan License, DoIP/CAN FD Protocol, Pre & Post Scan, Wifi Print.

Autel MaxiCOM MK900TS with Powerful TPMS Diagnostic System

MaxiCOM MK900TS TPMS Car Diagnostic Tool can perform OE-Level TPMS Diagnostics and find you TPMS-Related DTCS, it features to check the TPMS Module Status: Read/Clear trouble codes from TPMS, read live data to check the module status, turn off the error light. It will also provide an efficient method to quickly and accurately determine the current vehicle's model, year and frequency information, avoiding TPMS matching failure caused by incorrect selection.

1. Program All the Autel MX-Sensors

Autel MaxiCOM MK900TS allows you to program the sensor data to the MX-Sensor to replace the broken TPMS tire sensors with low batteries or other problems. There are 2 ways for programming: Copy by OBD and Auto Create 1-16 Sensors.

• Copy by OBD - By using this function, the scan tool will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensor.
• Auto Create 1-16 Sensors - The Auto Create function is used to automatically create a random sensor ID to program a new MX-Sensor. Up to 16 MX-Sensors can be programmed simultaneously.

Note: MK900TS can only program Autel Brand MX-Sensors, it can't program any other brand sensors.

2. Activate 99% of 315MHZ / 433MHZ TPMS Sensors

Autel MK900TS Full TPMS Scanner will activate 99% of 315MHZ/433MHZ TPMS Sensors in the market. It can activate all know OEM or Autel TPMS sensors to view sensor data, such as sensor ID, tire pressure, tire temperature, sensor battery condition, and sensor position.

3. Relearn 99% of TPMS Sensors

TPMS Expert MK900TS supports write the newly programmed sensor IDs into the vehicle ECU for sensor recognition, and there are three ways for relearn: stationary relearn, active relearn, OBD relearn.

• Stationary Relearn - Stationary relearn requires the vehicle to be in "Learn Mode" and allows the new TPMS sensor IDs to be written into vehicle's ECU via Autel MK900TS Tpms scanner without driving a vehicle.
• Automatic Relearn - An auto-relearn procedure is when a vehicle can learn a single or multiple TPMS sensor IDs without a TPMS relearn tool. The TPMS system will automatically reset itself after a while of driving.
• OBD Relearn - The OBDII relearn is mostly applied to Asian & European vehicles. An OBDII relearn requires the Autel MK900TS TPMS scan tool to write new sensor IDs directly to the vehicle's ECU following step-by-step instructions Relearn has never been so easy

4. Advanced TPMS Retrofit MK900TS Exclusive

TPMS retrofit is an advanced function that the other tools can only dream of, can help vehicles without factory-fitted OEM tire pressure module or sensors build everything from scratch, and realize safe tire monitoring and safe driving.

• Step 1: Back up the original vehicle data
• Step 2: Code the Autel TPMS module
• Step 3: Install the Autel TPMS module on the vehicle
• Step 4: Program the Autel TPMS sensors
• Step 5: Activate the Autel TPMS sensors or OE sensors
• Step 6: Relearn the sensor with on-board TPMS module

OE-Level All-Systems Diagnosis

Autel MaxiCOM MK900TS diagnostic tablet scanner can access and scan all available electronic systems to read and clear codes, view live data, and retrieve ECU information which brings workshop-level all available modules scanning to a whole car.

Bi-directional Control/Active Test

The Autel MaxiCOM MaxiCOM MK900TS scan tool output the commands to ECUs and monitor the operation of the actuators to quickly locate issues. For Example:

• Fuel Injector Balance, Injector Tests
• Cylinder Deactivation, A/C Compressor Clutch Relay On/Off
• Cycling ABS Pump Motor, EVAP Tests
• Switch on/off car wipers, Rolling up/down car windows/doors/sunroof
• Cooling fan motor command, Interior lighting test, High beam test

40+ Popular Maintenance Services

MaxiCOM MK900TS has 40+ Hot Services, which supports 150+ brands & AutoAuth for FCA Vehicles and helps you solve 99% complicated repairs, the services including Oil Reset, Injector Coding, ABS Auto Bleed, SAS, BMS, EPB, etc.

With MaxiCOM MK900TS, you can do the most basic car maintenance at home without taking the vehicle to a dealership and spending hundreds and thousands on something you can do it on your own.

Injector Coding: Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;

ABS Bleeding: When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;

Brake Reset: Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;

GEAR Learn: Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

Key Coding: Help ECU to recognize the new keys when you need to add new keys, and delete the lost keys;

Oil Reset: Reset the oil life systems every time the oil and oil filter are changed;

SAS Reset: Perform steering angle sensor calibration and clear records;

BMS Reset: Evaluate the battery charge state, register the battery replacement, etc.; More completed battery and starter-related detail working with BT506;

Relearn Throttle: Initialize the throttle so that the “learned” values stored on ECU are returned to the default state;

DPF REG: Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;

Note: The reset service is not applicable to all models, and the models supported by different functions are different. If you need to know whether Autel diagnostic tools can support it, please contact us via email sales@obdprice.com for a compatible check.

MaxiCOM MK900TS with 10M Bluetooth Connection

Autel MK900TS is by far the most cost-worthy wireless diagnostic tablet in the market. With a working range of 33 feet (10m), you don't need to worry about the cable is not long enough anymore!

Autel MaxiCOM MK900TS with Wide Coverage

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes after 1996.
Ford, Ford(EU), GM, Chrysler, Dodge, Jeep, BMW, Mini, Benz, Benz Sprinter, Maybach, Smart, Volvo, Land Rover, Jaguar, Porsche, Volkswagen, LT3, Volkswagen CV, Audi, Bentley, Lamborghini, MAN_LD, Seat, Skoda, Bugatti, Renault, Dacia, Samsung, Opel, Vauxhall, Peugeot, Citroen, Fiat, Abarth, Lancia, Toyota, Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Nissan GT-R, Scion, Subaru, Suzuki...

Autel MaxiCOM MK900TS Extensive Functions

Pre & Post Scan - Report is customized with shop and vehicle info

• Pre-scan Report: To help to expedite insurance carries approval of repair estimates, avoiding additional insurance authorizations.
• Post-scan Report: To prove all DTCs on the Pre-Scan report are fixed. DATED scan report to ensure vehicles are repaired and safe for customers.

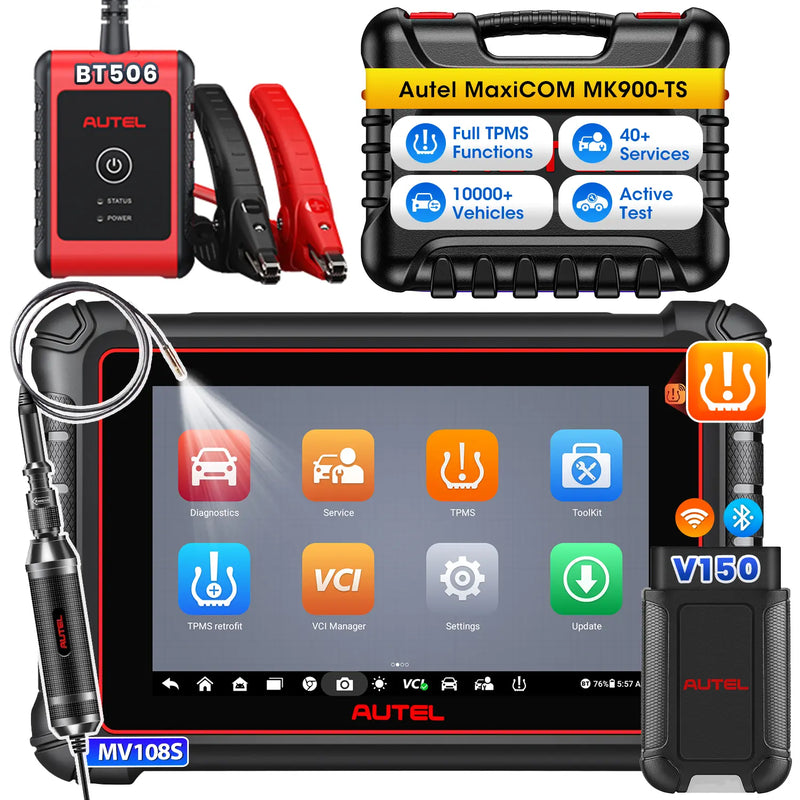

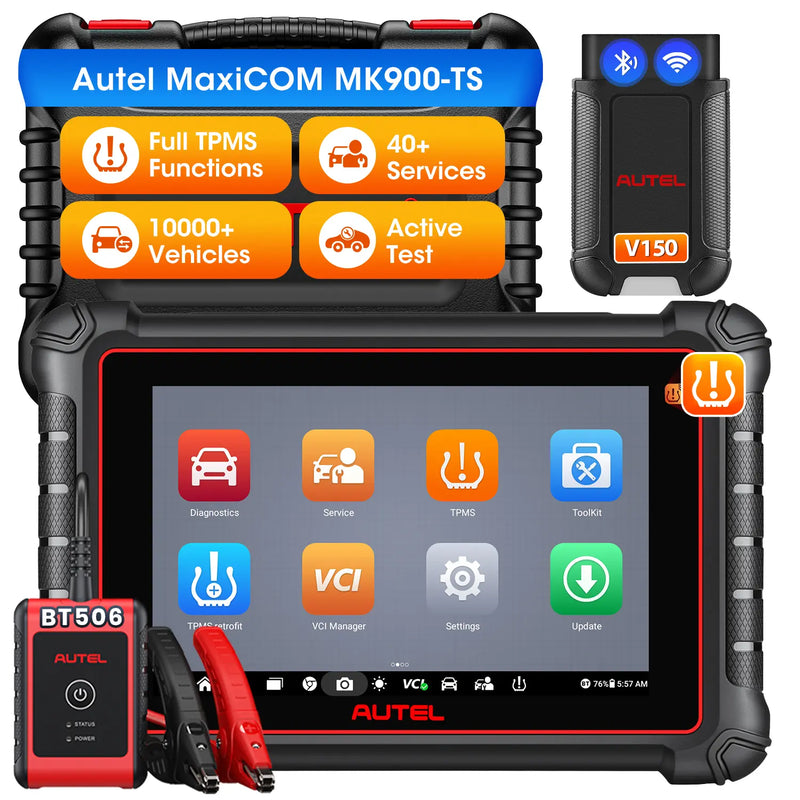

Compatible with BT506/MV108S

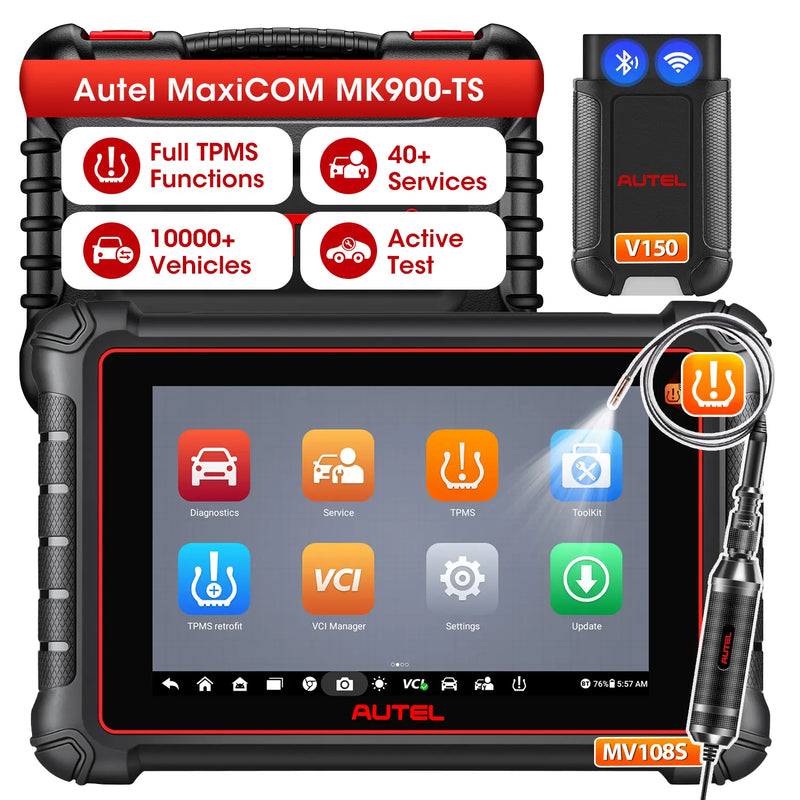

Autel MaxiCOM MK900TS is exclusively equipped with battery test ability(Work with BT506), compatible with the MaxiVideo MV108S inspection camera for up-close visual inspections.

FCA AutoAuth

There is no need to dismantle the FCA cars & diagnose with the 12+8 adapter. Just register an "AutoAuth" account on the device and you can pay tp diagnose the FCA vehicles after 2017.

Autel MaxiCOM MK900-TS Specifications
