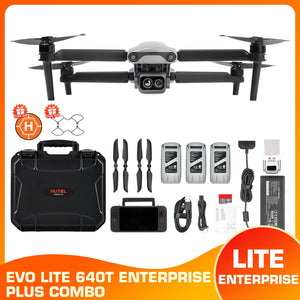

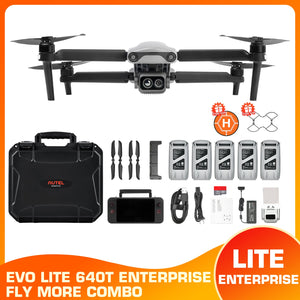

Autel EVO Lite 640T Enterprise

items available In Stock |
from Original price
Original price
$3,359.00
from $3,359.00
Current price $3,359.00
  • In Stock - Ships within 24 hrs
  • Order Now, Get a free EVO II Bag
  • 640*512 Infrared Thermal Imaging
  • AI Target Recognition & Positioning
  • 6K Resolution
  • 16x Digital Zoom
  • Max video resolution of 4K 30P
  • 12km Video Transmission Range
  • 40 Minute Flight Endurance
  • Extremely lightweight & portable

Delivered by Fri, Sep 20 - Sun, Sep 22 Ship from New Jersey or California, United States

Service

Fast, Free Shipping & No Extra Tax

30-Day Return or Replacement

12-Month Free Warranty

Lifetime Customer Support

  • Description
  • Specs
  • Video
  • Accessories
  • Downloads
  • Shipping
  • Certificate
    • Description
  • Autel Robotics EVO Lite 640T Enterprise

    The EVO Lite Enterprise Series, offers multiple advantages such as a lightweight and portable design, rapid deployment, and simple control for industrial applications. The AI target recognition feature enables the aircraft to easily identify and map various target objects automatically. The three-way binocular vision obstacle avoidance provides a safe flying experience.

    The EVO Lite 640T Enterprise features a dual gimbal system, with a visible-light camera providing clear and detailed images, while the thermal-imaging camera aids in decision-making during operations. Paired with the Autel Enterprise professional flight software, it offers easy operation, user-friendly interaction, flexible single-person deployment, and efficient application in scenarios such as public safety and emergency rescue.

    EVO Lite 640T Enterprise Top Highlights

    Lightweight and Portable

    The EVO Lite Enterprise Series aircraft weigh only 866 grams and have folded dimensions of just 210*123*95mm, making them easy to carry in a backpack. With a simple operation, they are ideal for efficient execution of missions by a single operator.

    Autel Enterprise App

    Autel Enterprise is a professional flight mission software designed for industry applications by Autel Robotics. It features an optimized interaction design for simple and efficient operation, an editable toolbar design for intuitive use, and integrates intelligent and professional functions to fully utilize the industry value of the EVO Lite Enterprise Series aircraft.

    Split-Screen Display: Visible light, infrared, or map support dual-channel simultaneous output on the screen, providing comprehensive information through comparison.

    Customizable Toolbar: Customize the menu toolbar in the app for quick access to frequently used functions, meeting personalized usage needs.

    Offline Maps: Addresses the issue of map loading failures in no-network or weak-network environments by supporting offline maps, aiding in precise flight positioning.

    AI Target Recognition and Positioning

    Utilizing wide-angle or infrared lenses combined with intelligent AI algorithms and a self-learning system, the aircraft can automatically recognize and locate, including people, cars, and boats, projecting their positions on the map.

    EVO Lite 640T Enterprise Dual Gimbal

    Equipped with a dual gimbal, the wide-angle visible-light camera offers a broad field of view with vivid high-definition images, while the infrared thermal-imaging camera integrates high-resolution thermal-imaging algorithms, providing clear and detailed thermal source identification.

    Thermal Imaging Camera

    640*512 resolution // 9.1 mm focal length // 16x digital zoom

    Temperature measurement range: -20°C to 150°C / 0°C to 550°C

    Temperature accuracy: ±3°C or ±3% of reading (whichever is greater)

    Visible Light Camera

    1/2 inch CMOS // 48 million pixels // F2.8 aperture // 16x digital zoom

    Maximum photo size of 8000*6000

    Maximum video resolution of 4K 30P

    High-Definition Video Transmission

    Equipped with Autel SkyLink image transmission technology for a dual-signal, dual-reception system, the image transmission anti-interference capability improved, and the transmission distance reaches up to 12 kilometers. It supports 2.4GHz/5.2GHz/5.8GHz adaptive frequency hopping transmission, automatically selecting the best channel based on electromagnetic interference, providing strong anti-interference capability.And 1080P/30FPS real time image transmission quality.Less 200 Milliseconds latency.

    Visual Perception System

    The drone is equipped with wide-angle vision sensors at the front, back, and bottom, ensuring reliable flight safety.

    Flight Performance

    Born small but mighty. The outstanding flight performance of the EVO Lite Enterprise Series drones effortlessly tackles various challenges across multiple scenarios, significantly enhancing the efficiency of single-person mission flights.

    40 minutes of endurance

    18 meters per second Maximum horizontal flight speed

    3000 meters Maximum takeoff altitude

    SDK Ecosystem

    The open Mobile SDK provides efficient, versatile, and easy-to-use control and service interfaces, enhancing development efficiency and enabling the creation of custom solution scenarios.

    Data Security with Multiple Protections

    Privacy Protection: Flight logs, locations, and other user privacy data require user consent to upload.

    Encrypted Storage: Supports AES encryption for photos, videos, and flight logs, requiring a password for access.

    Video Live Streaming: Supports RTMP and GB28181* protocols for live streaming, allowing for remote real-time viewing and analysis. *The GB28181 video live streaming protocol feature is pending future updates.

    • Specs
  • EVO Lite 640T Enterprise Specs

    • Aircraft
      Weight 866 g
      Maximum takeoff weight 866 g
      Dimensions
      210×123×95mm (folded, propellers included)
      433×516×95mm (unfolded, propellers included)
      Max. rotation speed 8000 rpm
      Wheelbase 368 mm
      Propeller Dimension 8.5 inch injection molded propeller. Spec: 8530
      Propeller weight 7.5 g
      Maximum ascent speed
      Slow:3 m/s
      Smooth:3 m/s
      Standard: 5 m/s
      Ludicrous: 6 m/s
      Maximum descent speed
      Slow:3 m/s
      Smooth:2 m/s
      Standard: 3 m/s
      Ludicrous: 4 m/s
      Maximum horizontal flight speed
      (no wind near sea level)
      Slow :3 m/s
      Smooth:5 m/s
      Standard: 10 m/s
      Ludicrous: 18 m/s
      Maximum Service Ceiling Above Sea Level
      3000 meters
      Maximum flight altitude
      Chinese Mainland or EU: no more than 120 meters
      US: no more than 400 feet
      Note:
      In the flight application UAV, it can be set from 0 to 800 meters. To set beyond height required by law, you need to obtain authorization from authority.
      Maximum flight time
      (no wind)
      40 minutes
      Note: Tested in lab with nearly no wind when aircraft flies at speed of 10 m/s and only for reference.
      Maximum flight mileage
      24 km
      Maximum hover time
      (no wind)
      37 minutes
      Note: Tested in lab with nearly no wind when aircraft hovers and only for reference.
      Maximum wind resistance level
      Fresh breeze
      Maximum tilt angle
      Slow: 15°
      Smooth: 30°
      Standard: 30°
      Ludicrous: 33°
      Maximum rotation angular speed
      Smooth: 60°/s
      Standard: 120°/s
      Ludicrous: 200°/s
      Working temperature
      -10℃~40℃
      Battery hot replacement
      Not support
      Internal storage
      Onboard storage: 4GB (support microSD card of up to 256GB)
      GNSS
      GPS/BDS/GLONASS
      Hover accuracy
      Vertically:
      ±0.1 meters (when visual positioning is working normally)
      ±0.3 meters (when GNSS is working normally)
      Horizontally:
      ±0.15 meters (when visual positioning is working normally)
      ±0.3 meters (when GNSS is working normally)
    • Image Transmission
      Operating Frequency 2.4G: 2.400 – 2.476 GHz*; 2.400 – 2.4835 GHz
      5.2G: 5.15 - 5.25 GHz**
      5.8G: 5.725 - 5.829 GHz*, 5.725 - 5.850GHz
      *Only applicable to SRRC regions
      **Only applicable to FCC regions
      Note: Some frequencies are only available in some regions and some frequencies are only allowed for indoor use. Check local laws and regulations for details.
      Maximum signal effective distance
      (No interference, no obstruction)
      FCC: 12 km
      CE: 6 km
      Effective transmitter power
      ( EIRP)
      2.4G: ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC/UKCA)
      5.2G: ≤30dBm (FCC)
      5.8G: ≤30dBm(FCC/SRRC/ISED/RCM); ≤14dBm(CE/UKCA)
    • Visual Perception System
      Sensing range Forward: 0.2~23 meters
      Effective obstacle avoidance speed: <10m/s
      Backward: 0.2~30 meters
      Effective obstacle avoidance speed: <10m/s
      Downward: 0.2~20 meters
      FOV Forward:
      75° horizontally, 87° vertically
      Backward:
      35° horizontally, 45° vertically
      Downward:
      99° horizontally, 83° vertically
      Effective use of the environment Front, rear: The surface has rich texture and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment)
      Below: The ground is richly textured and the lighting conditions are sufficient (>15 lux, normal indoor fluorescent lighting environment) The surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.)


    • EVO Lite 640T Enterprise —— Visible Light Camera
      Image sensor 1/2 inch CMOS, 48 million pixels
      Lens
      DFOV: 83.4°
      Equivalent focal length of 35mm: 24 mm
      Aperture: f/2.8
      Focus distance: 0.5 meter ~ ∞
      Focus: FF (Fixed Focus)
      ISO range
      Auto/Manual: ISO100 ~ ISO6400
      Shutter speed
      1/10000 ~1/60 seconds
      Defog mode
      Support
      Zoom
      1-16x digital zoom
      Maximum photo size
      4000×3000, 8000×6000
      Photo format
      JPG
      Video resolution
      4000×3000 P30
      Video format MP4/MOV
      Video coding format
      H.265/H.264
      Support file system
      FAT32/exFAT
    • EVO Lite 640T Enterprise —— Thermal Imaging Camera
      Image Sensor Uncooled VOx Microbolometer
      Lens
      FOV: 61°
      Focal length: 9.1 mm
      Aperture: f/1.0
      Focusing distance: 2.2 m ~ ∞
      Sensitivity
      ≤50mK@f/1.0, 25°C
      Pixel Pitch
      12um
      Wavelength
      8 - 14um
      Radiometric Measurement Method
      Center measurement/Pot measurement/Rectangular measurement
      Radiometric Temperature Range
      -20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
      Radiometric Measurement Accuracy
      ±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
      Accurate Temperature
      Measurement Distance
      1 ~ 25 m
      Digital Zoom
      1-16x digital zoom
      Temperature Alert
      In area temperature measurement, support high and low temperature alarm thresholds, reporting coordinates and temperature values
      Palette
      White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
      Photo Size
      640×512
      Photo Format
      JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
      Video Resolution
      640×512 30P
      Video Format
      MP4/MOV
    • EVO Lite 640T Enterprise Gimbal
      Mechanical scope Pitch: -135°~45°
      Roll: -50°~50°
      Yaw: -90°~90°
      Controllable rotation range
      Pitch: -90°~30°
      Stable system
      Three-axis stabilization
      Maximum control speed (pitch)
      100°/s
      Angualr vibration range
      ±0.003°
    • Autel Smart Controller SE V2
      Material PC+ABS
      Dimensions
      226.3×137.7×31.5 mm (antennas folded)
      226.3×215.4×31.5 mm (antennas unfolded)
      Weight 607 g
      Operating Temperature
      -10°C to 40°C
      Storage Temperature
      +15°C ~ +25°C (within a year)
      0°C ~ +30°C (within three months)
      -20°C ~ +45°C (within a month)
      Protection Rating IP43
      Internal Storage
      Built-in storage of 32GB
      Available storage: 24GB
      MicroSD Extension
      Supported
      Operating System Based on Android 6.0.1
      Application Installation
      Supports the installation of third-party Android apps
      USB -C Charging: supports PD/QC fast charging, up to 65W
      USB -A
      USB2.0
      GNSS GPS/Galileo/BDS/GLONASS
      Wi-Fi Protocol
      802.11a/b/g/n/ac
      Supports 2×2 MIMO Wi-Fi
      Wi-Fi Operating Frequency 2.4G:
      2.400 – 2.476GHz*, 2.400 – 2.4835GHz
      5.8G:
      5.725 - 5.829GHz*, 5.725 - 5.850GHz
      *Only applicable to SRRC regions
      Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations.
      Wi-Fi Effective Isotropic
      Radiated Power (EIRP)
      2.4G:
      ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC); ≤12.14dBm (MIC)
      5.8G:
      ≤30dBm (FCC/SRRC/ISED); ≤14dBm (CE)
      Bluetooth Bluetooth 4.2
      Bluetooth Operating Frequency 2.400-2.4835GHz
      Note: Some regions specify frequency ranges. For details, please refer to local laws and regulations.
      Bluetooth Effective Isotropic
      Radiated Power (EIRP)
      ≤20dBm
    • Autel Smart Controller SE V2 Image Transmission
      Antenna Dual antennas, 1T2R, detachable design
      Operating Frequency
      900M: 902 - 928MHz*
      2.4G: 2.400 – 2.476GHz**,2.400 – 2.4835GHz
      5.2G: 5150-5250MHz***
      5.8G: 5.725 - 5.829GHz**,5.725 - 5.850GHz
      *Only applicable to FCC and ISED regions
      **Only applicable to SRRC regions
      ***Only applicable to FCC and RCM regions
      Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations.
      Effective Isotropic Radiated Power
      (EIRP)
      900M:
      ≤30dBm (FCC/ISED)
      2.4G:
      ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC)
      5.2G:
      ≤30dBm (FCC/RCM)
      5.8G:
      ≤30dBm (FCC/SRRC/ISED/RCM); ≤14dBm(CE)
      Maximum Transmission Distance
      (Without Interference and Blocking)
      FCC: 12 km
      CE/SRRC: 8 km
    • Autel Smart Controller SE V2 Display
      Resolution 1440×720
      Refresh Rate
      60Hz
      Touch Control
      Supports 10-point touch
    • Autel Smart Controller SE V2 Battery
      Battery Type Li-Po
      Rated Capacity
      1900 mAh
      Voltage
      DC 7.7V
      Battery Energy
      14.63 Wh
      Charging Time
      About 90 minutes
      (charging time is related to actual remaining power)
      Battery Endurance
      1.5 hours (Max brightness)
      2.5 hours (50% brightness)
      Battery Replacement
      Supported
    • Smart battery
      Operating Temperature 0 ~ +40℃
      Battery Type
      LiPo 3S
      Rated Capacity
      6175 mAh
      Battery Energy
      68.7 Wh
      Voltage
      11.13 V
      Charging Voltage Limit
      12.75V
      Rated Charging Power
      63.75W
      Rated Charging Power
      78W
      Weight
      309g
      Battery charging temperature
      +5-+45℃
      (When the battery temperature is below 5℃, the battery stops charging. When the battery temperature is above +45℃, the battery stops charging.)
      Ideal storage environment + 22℃ ~ +28℃
      Storage temperature and humidity - 10℃ ~ +30℃, 65 ± 20%RH
    • Battery Charger
      power input 100-240V ~ 50/60 Hz, 1.5 A
      Output port
      Battery charging interface/USB-A
      Battery charging interface
      12.75V⎓5A
      USB charging port
      5V⎓3A, 9V⎓2A, 12V⎓1.5A
      Rated power
      63.75W Max


    • Video
  • New product release | Introducing EVO Lite Enterprise Series

    AI Target Recognition -- EVO Lite Enterprise Series

    Tripod -- EVO Lite Enterprise Series

    Infrared Thermal Imaging -- EVO Lite Enterprise Series

    Split Screen Display -- EVO Lite Enterprise Series

    Customizable Toolbar -- EVO Lite Enterprise Series

    Offline Maps -- EVO Lite Enterprise Series

    • Accessories
  • Autel EVO Lite 640T Enterprise Package ListAutel EVO Lite 6K Enterprise Package List

    • Downloads
  • Name

    Download

    EVO Lite Enterprise Series Aircraft User Manual_V1.0

    EVO Lite Enterprise Series_Basic Combo Packing List

    EVO Lite Enterprise Series_Quick Start Guide

    • Shipping
  • Free Worldwide Shipping

    shipping policy

    Where is my order shipped from?

    We provide worldwide free shipping! And all orders will be shipped from the warehouse nearest to you and carried by DHL, FedEx, UPS, USPS, DPD, or Royal Mail according your address. Following is the location where our warehouse located at and estimate develiry date for reference.

    Your Address Shipping Location Delivery Estimated
    United States/ Canada CA, US NJ, US 3-5 Days
    Europe Germany 5-7 Days
    United Kingdom Leicestershire, UK 5-7 Days
    Australia Sydney, AU 7- 10 Days
    Other Countries HongKong 7-15 Days

    Order Processing Time

    All our order are processed and shipped out within 24 hours (excluding weekends and holidays).

    After the order is shipped out and received by the carrier, we will update you by email with a Track-and-Trace code with which you can follow your package and see the remaining shipping time.

    Please allow 24-48 hours for the tracking information to update.

    Shipping Address Change

    If you would like to change the shipping address for your order, please contact us by email with the new shipping address. Once the order is shipped, we can not alter the shipping address anymore.

    International Shipping Duties & Taxes

    - For international order. If the items don't ship from your local warehouse in your country/ region, you, the customer, will be responsible for the import duty, but please don't worry, We will decrease the declared value to reduce your import tax.

    For more details of the Import Tax, please visit Import Duty

    Returns, Refunds, and Exchanges

    We provide a 30-Day Returns Service after delivery, If you are not satisfied with the item you bought or change your mind, please contact us for a return shipping address and ship all the items back to us for a refund in their original package.

    For more details of the return policy, please visit our Return Policy

    • Certificate
  • Autel Authorized Dealer

    Obdprice.com is Autel Authorized Exclusive Online Dealer. Products Created by Autel ® Innovation & Quality You Can Trust.

    autel scanner UK authorized dealer
