【2-Year Free Update】Autel MaxiSys Ultra (US Version) 2024 Version Full System Diagnostic Bi-Directional Scanner with 5-in-1 VCMI, Topology Map, 40+ Services, ECU Programming & Coding

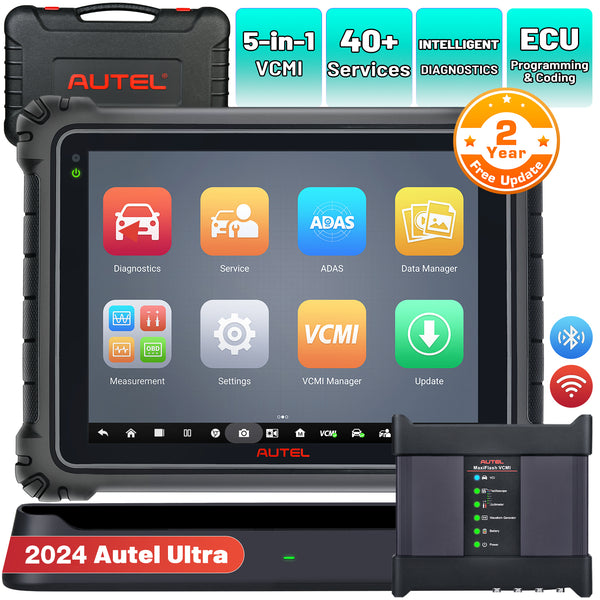

Autel Maxisys Ultra Diagnostic Tablet

The MaxiSys Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 13-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor, substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features, and Intelligent Diagnostics options, the Autel Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

Autel Maxisys Ultra Features:

• Large 12.9" Touchscreen (2732 x 2048) / Android 7.0
• 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
• Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
• Oscilloscope Preset Guided & Component Tests / Waveform Library
• New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
• Split Screen Multi-Application Function / Dual Wi-Fi Connection
• Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
• Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
• Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
• Code-Related Technical Service Bulletins (on select vehicles) / License Plate Reader
• ScanVIN: Barcode or Text Recognition with Camera
• Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
• Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1 YR Warranty & Software Subscription
• Enhanced Diagnostic Reports: PreSCAN & PostSCAN
• 18000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

Autel MaxiSys Ultra Full Systems Diagnosis Services:

Doing regular and routine maintenance on a modern car is impossible without a diagnostic system. Even the simplest procedures require the participation of an auto scanner. That's why Autel engineers have been working on them and making them as user-friendly as possible in the new MaxiSys Ultra. Now you can easily do functions like:

1. Oil Reset - Reset the oil change calculator in the engine and automatic transmission
2. EPB - Replacement of brake pads on vehicles with an electric parking brake
3. SAS - Adaptation of the sensor to the angular position of the steering wheel
4. DPF - Regeneration of diesel particulate filter
5. Brake Bleed - ABS Brake Bleeding
6. IMMO - Disable any lost keys and add new keys. *ONLY for vehicles with low-grade anti-theft systems. Compatible with GM, Ford, Toyota, Honda, and other 56 brands or models.
7. TPMS - Battery registration and reset
8. Seat Calibration - Calibrate the memory in replaced or repaired seats
9. Airbag Reset - Resets the airbag data to clear the airbag collision fault indicator
10. A/F Reset - Set or learn Air/Fuel ratio parameters
11. Gearbox Reset - Help complete the gearbox self-learning to improve gear shifting quality
12. Suspension Reset - Adjust the vehicle body height sensor for level calibration
13. BMS - Battery registration and reset

Autel 5 in 1 MaxiFlash VCMI - Four Isolated Channels:

Autel MaxiSys Ultra top automotive diagnosis scanner is equipped with MaxiFlash VCMI, a powerful multifunctional connector with Oscilloscope, Waveform Generator, Multimeter, and OBD Communication, functions worth over $2000 on the market. Via the VCMI with New CAN BUS Protocols (latest DOIP & CAN FD BUS) and OE-Diagnostic Protocol Standards (D-PDU/J2534/RP1210), you can use it with the original OE diagnosis scanner for programming.

Autel MaxiSys Ultra Advanced Functions:

• Autel MaxiSys Ultra ECU Programming ECU Coding--Autel diagnostic scanner Ultra comes with J2534 ECU programming device BMW Ethernet Cable(For F-Series Coding Programming), which is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new Benz/BMW ECUs and fixing software-controlled drivability issues and emission issues, update the computer software on the vehicle to the latest version.
  Note: ECU Programming only for BMW/Mercedes Benz

• Autel Ultra Bi-directional Control Active Test--Ultra automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, or roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.
  Note: Available tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu. To check compatibility with your vehicle, please refer to the Autel website or consult us directly.

Know more about Autel Maxisys Ultra

1. Is the Autel Maxisys Ultra worth it?

If you need a 4 channel lab scope in your shop then look no further. The Autel Ultra does everything but it does it faster and with a larger screen. Accessories such as test leads, alligator clips, and back probes are all neatly stowed in the rugged case.

2. What can Autel ultra do?

It offers multiple repair guidance options: Technical Service Bulletin, DTC Analysis, Repair Assist, Repair Tips, Component Measurement, and Relevant Cases, making your work 200% easier than ever. Also, it has 40+ service functions to meet all the needs, helping your win more business.

Autel Maxisys Ultra Specification:

Autel MaxiSYS Ultra Detail Display

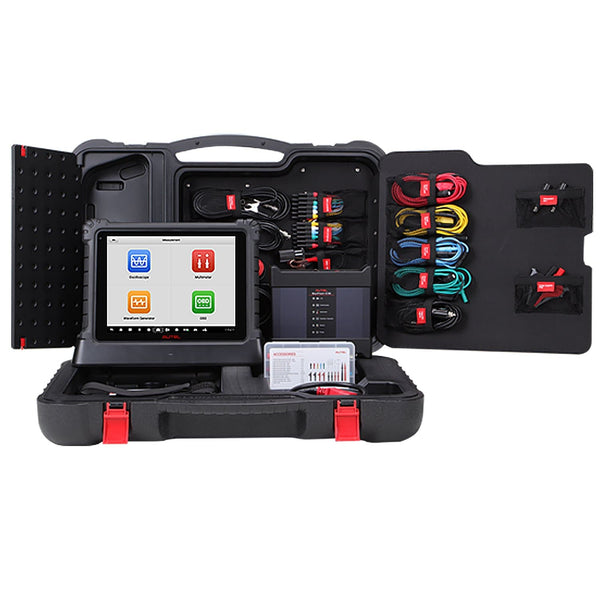

Autel MaxiSYS Ultra Package Content:

• Maxisys Ultra Main Unit
• MaxiFlash VCMI
• Main Cable V2.0
• USB 2.0 Cable V2
• AC/DC Adapter(12V)
• Cigarette Lighter
• Light Fuse 6x30mm 2PCS
• Clipper Cable
• Scope Test Lead 4PCS
• Multimeter Test Lead 2PCS
• Secondary Ignition Pickup 2PCS
• Attenuator 20:1 2PCS
• Breakout Lead 4x6PCS
• Multimeter Probe 1x2PCS
• Flexible Back-pinning Probe 2x2PCS
• Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5PCS
• Back-pinning Probe Screw 2PCS
• Back-pinning Probe Replacement Needle 20PCS
• Small Crocodile Clip 2x2PCS
• Large Dolphin Clip 1x2PCS
• Quick Reference Guide
• Packing List
• Soft Cloth
• Tool Box 177 x 102.5 x 23.5 mm
• Carrying Case 687 x 170 x 470 mm
