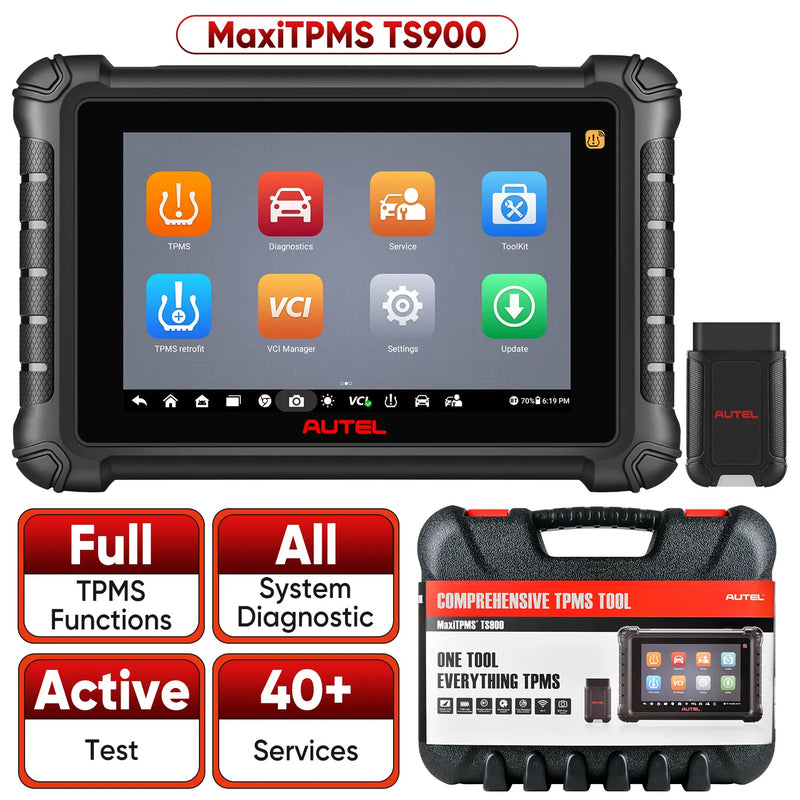

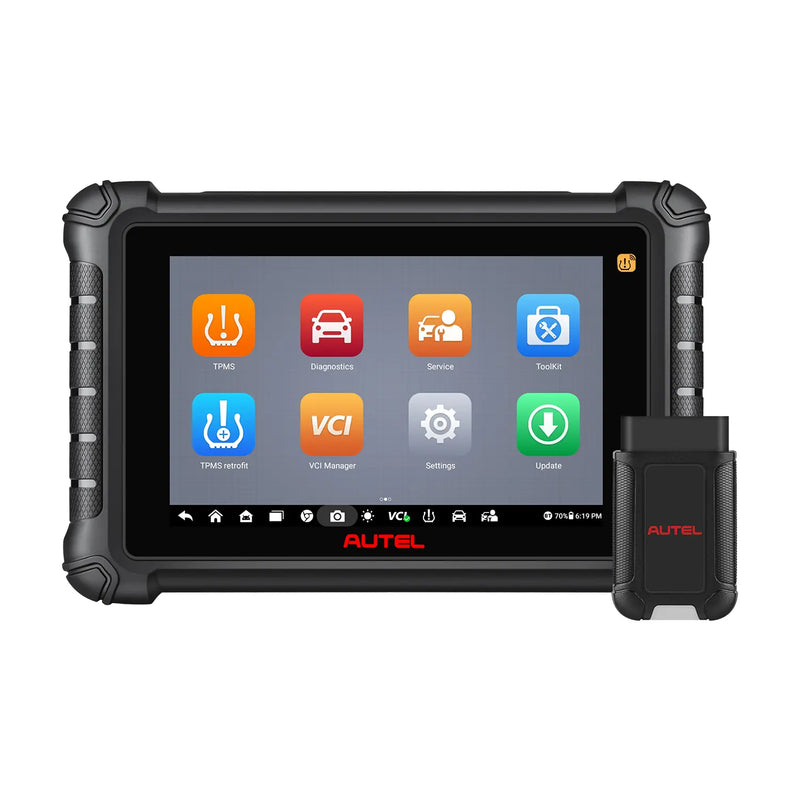

Autel MaxiTPMS TS900 Diagnostic Scanner - 2024 Newly Released
Autel released the MaxiTPMS TS900 in 2024 as the new version of MaxiTPMS TS608, MX808TS, MK808TS, and MK808S-TS. The MaxiTPMS TS900 is designed to cover a wider range of vehicles and functions, with updated software and hardware. As a result, it has become one of the most cost-effective bidirectional scan tools in the Autel family.
Top Reasons to Choose MaxiTPMS TS900
-
OE-Level All Systems Diagnostic: Autel MaxiTPMS TS900 diagnostic tablet scanner can access and scan all available electronic systems to read and clear codes, view live data stream, and retrieve ECU information.
-
Bi-Directional Control/Active Test: Thanks to the full bidirectional control feature, TS900 can do everything Autel TS608 does. Autel TS900 bidirectional scanner control various systems and components of the vehicle
-
40+ Service Functions: Autel MaxiTPMS TS900 car diagnostic tool also provides 40+ services including Oil Reset, EPB, SAS Reset, D-P-F Regeneration, Throttle Reset, ABS Bleed, Battery Registration, Injector Coding, WIN DR Roof,Cylinder, Headlamp and so on.
-

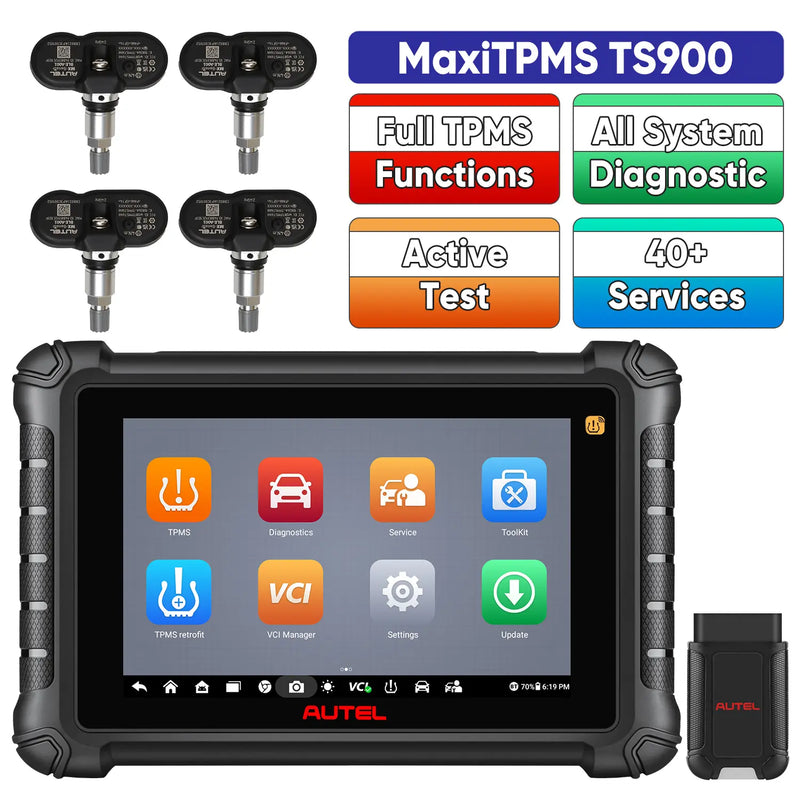

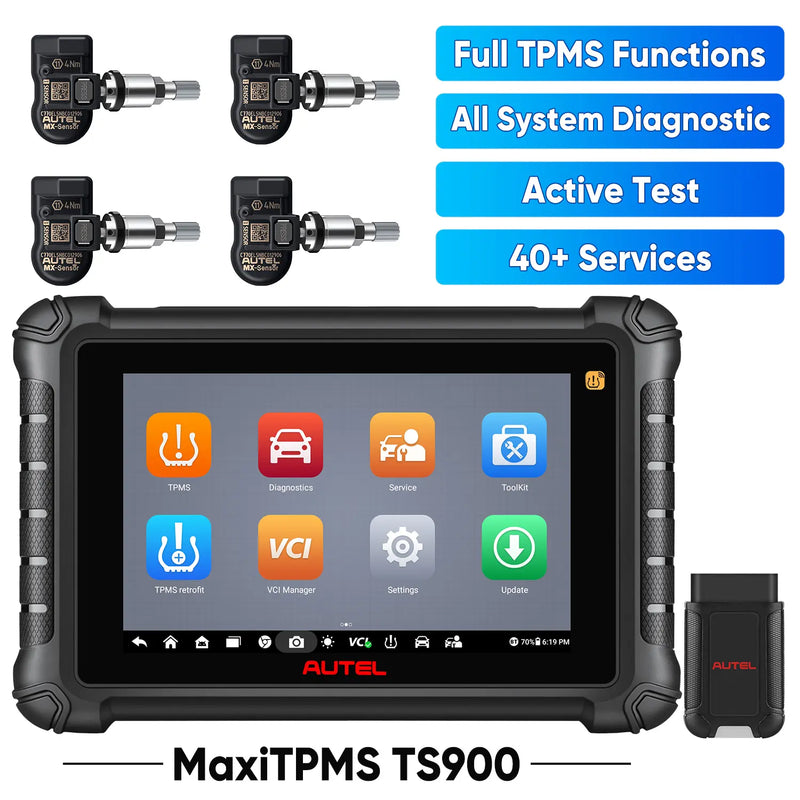

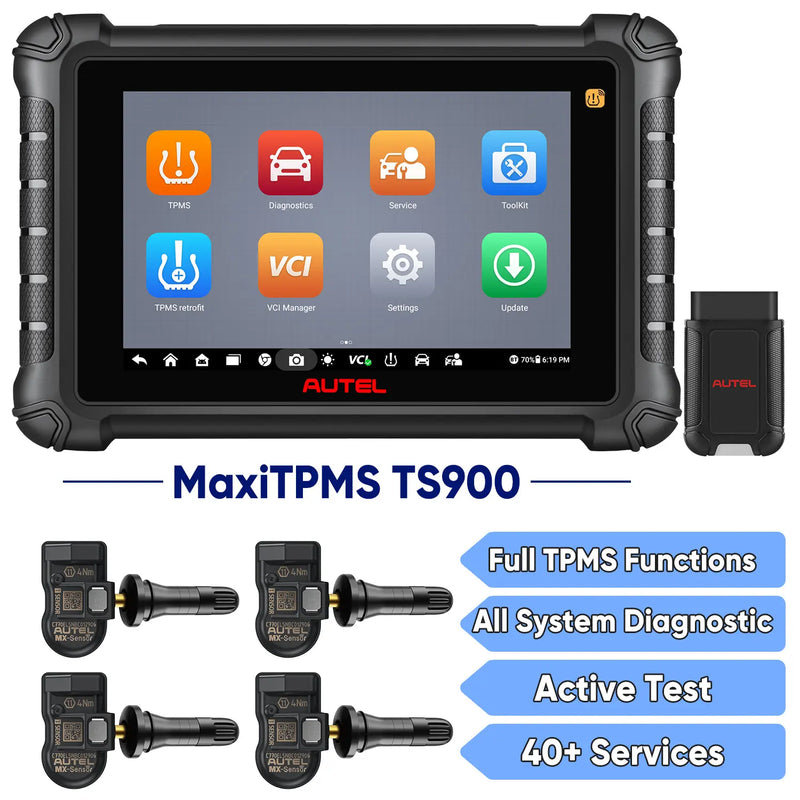

Full TPMS Functions: Easily diagnose and service TPMS, activate/relearn 99% of known sensors, and program MX-sensors.
-
Enhanced Hardware: Autel MaxiTPMS TS900 is equipped with Android 11.0 OS, ROCKCHIP RK3566 CPU, 4G RAM & 64G ROM, 5X Faster, 8-inch LCD capacitive touchscreen and 8 MP Rear Camera.
-
Wide Coverage: Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes after 1996. Ford, Ford(EU), GM, Chrysler, Dodge, Jeep, BMW, etc.
-
AUTO VIN & AUTO SCAN: Autel MaxiTPMS TS900 diagnostic scan tool can quickly work on specific vehicles to retrieve VIN information and perform comprehensive scan on all available systems for efficient and accurate diagnosis and services.
-
1-Year Warranty: Offering 1-Year Warranty and 1-Year-free software update for Autel TS900.
Autel MaxiTPMS TS900 with Powerful TPMS Diagnostic System
MaxiTPMS TS900 TPMS Car Diagnostic Tool can perform OE-Level TPMS Diagnostics and find TPMS-Related DTCS, it features to check the TPMS Module Status: Read/Clear trouble codes from TPMS, read live data to check the module status, turn off the error light. It will also provide an efficient method to quickly and accurately determine the current vehicle's model, year and frequency information, avoiding TPMS matching failure caused by incorrect selection.
Autel MaxiTPMS TS900 with Dealership Level All System Diagnostic
Autel MaxiTPMS TS900 2024 Model performs comparable to the diagnostic capacity of the original factory. It works well to read & clear codes, ECU information reading, read live data, view freeze frame, graphic data, and performs special functions for all available systems.
The MaxiTPMS TS900 is your best choice for all system diagnostic, including Anti-lock Brake System(ABS), Electronic Parking Brake(EPB), Battery Mange System(BMS), Supplemental Restraint System(SRS), Steering Angle System(SAS), Air Conditioning System, etc.
Autel MaxiTPMS TS900 With Bi-Directional Control/ Active Test
Autel MaxiTPMS TS900 Scanner performs bi-directional control, which is able to transmit control commands to operate the vehicle systems. This function is useful in determining whether the ECM responds to a command well.
To be more clear, I will take an example for you:
- If one part of your vehicle didn't work, you are able to use the Autel TS900 scanner to quickly shot the trouble without removing any parts. So convenient for Home Mechanic and Workshop!
- Here are some specific application situations:
- Turn on / off Doors & Windows & Lights
- Adjust the Window Wipers & Headlamp
- Mirrors Folding / Unfolding
-
Note: Autel MaxiTPMS TS900 is not universal for all vehicles, if you are interested in this device, email us with your vehicle VIN for a compatible check.
2024 MaxiTPMS TS900 with 40+ Maintenance Services
Maybe you are always haunted by the following situations:
- Highly Maintenance and Repair Costs
- Low Coverage
- Outdated device
Fortunately, with 40+ maintenance services, wide coverage, and high-frequency updating, this Autel MaxiTPMS TS900 Diagnostic Scan tool is able to perfectly relieve your anxiety.
The services are included but not limited Oil Reset, EPB Reset, TPMS Reset, ABS Bleed, BMS Reset, Throttle Matching, SAS Calibration, Suspension Calibration, Airbag Reset, ABS & SRS, WIN DR Roof, Seats Calibration, Language Change, Headlamp Matching, Cylinder, Clutch, A/F Setting, etc.
Note: The compatible services may differ from different vehicles.
Injector Coding: Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;
Brake Reset: Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;
GEAR Learn: Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.
Key Coding: Help ECU to recognize the new keys when you need to add new keys, and delete the lost keys;
Oil Reset: Reset the oil life systems every time the oil and oil filter are changed;
SAS Reset: Perform steering angle sensor calibration and clear records;
BMS Reset: Evaluate the battery charge state, register the battery replacement, etc.
ABS Bleeding: When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;
Relearn Throttle: Initialize the throttle so that the “learned” values stored on ECU are returned to the default state;
DPF REG: Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;
MaxiTPMS TS900 with Wide Coverage
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes after 1996.
Ford, Ford(EU), GM, Chrysler, Dodge, Jeep, BMW, Mini, Benz, Benz Sprinter, Maybach, Smart, Volvo, Land Rover, Jaguar, Porsche, Volkswagen, LT3, Volkswagen CV, Audi, Bentley, Lamborghini, MAN_LD, Seat, Skoda, Bugatti, Renault, Dacia, Samsung, Opel, Vauxhall, Peugeot, Citroen, Fiat, Abarth, Lancia, Toyota, Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Nissan GT-R, Scion, Subaru, Suzuki...
Note: Autel MaxiTPMS TS900 is not universal for all vehicles, please email us at sales@obdprice.com, and send us your VIN to have a compatible check.
MaxiTPMS TS900 Extensive Functions
Work with Autel MV108S Camera
This function can provide you clear image, such as engine cylinders and other small part inspections, easy-to-see.
More help will be provided
Remote Desk allows you to quickly get the support from Autel's technicians
Auto VIN
This function allows you accurately and fast identification of Vehicle Information
MaxiTPMS TS900 Specifications
| Item |
Description |
| Tablet |
Recommended Use |
Indoor |
| Operating System |
AndroidTM 11 |
| Processor |
Quad-Core (1.8 GHz) |
| Memory |
4 GB RAM & 64 GB ROM |
| Display |
8-inch LCD screen with 1280 x 800 resolution |
| Rear Camera |
8 MP |
| Connectivity |
• Wi-Fi
• USB 2.0, Type C
• BT
• Mini SD Card (supports up to 64 GB)
|
| Sensors |
Ambient light sensor for brightness auto changing |
| Audio input/output |
Input: N/A
Output: buzzer |
| Power and Battery |
• 3.7 V/7700 mAh lithium-polymer battery
• Charges via 5 V DC power supply |
| Tested Battery Life |
Around 7 hours of continuous use |
| Battery Charging Input |
5 V/3 A |
| Power Consumption |
Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. |
0 to 50 °C (32 to 122 °F) |
| Storage Temp. |
-10 to 60 °C (14 to 140 °F) |
| Operating Humidity |
5% to 95% non-condensing |
| Dimensions (W x H x D) |
1259.87 mm (10.23”) x 168.98 mm (6.65”) x 33.60 mm (1.32”) |
| Net Weight |
998 g (2.2 lbs) |
| Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM,
ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN),
SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD
|
| V150 |
Communication |
BR + EDR |
| Wireless Frequency |
2.4 GHz |
| Input Voltage Range |
8 to 30 V DC |
| Supply Current |
150 mA @ 12 V DC |
| Operating Temp. |
0 to 50 °C (32 to 122 °F) |
| Storage Temp. |
-10 to 60 °C (14 to 140 °F) |
| Dimensions (L x W x H) |
77.47 x 46.8 x 21.38 mm (3.05” x 1.84” x 0.84”) |
| Weight |
51.5 g (0.11 lbs) |
