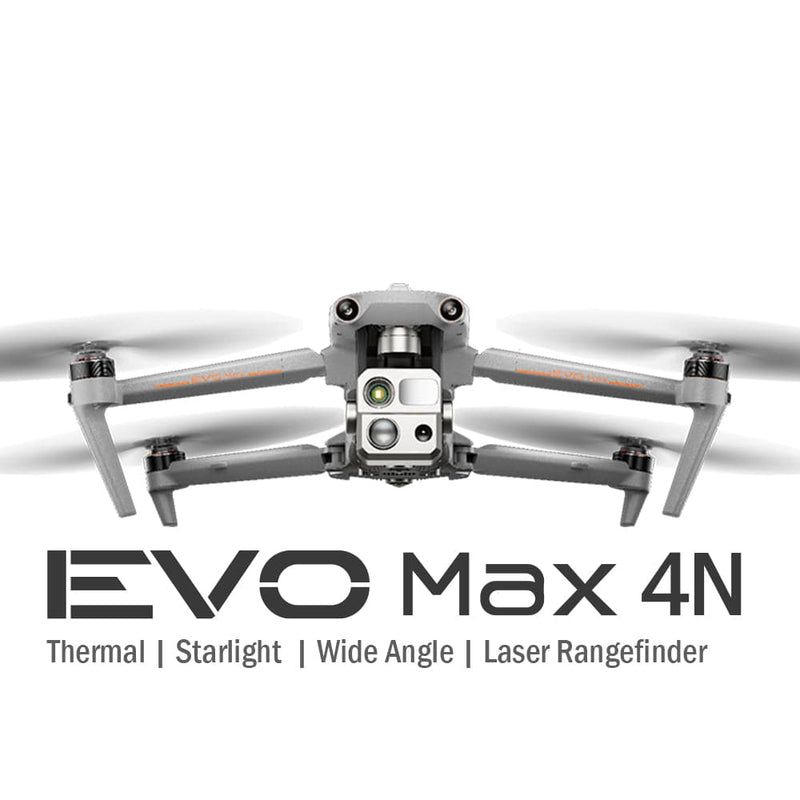

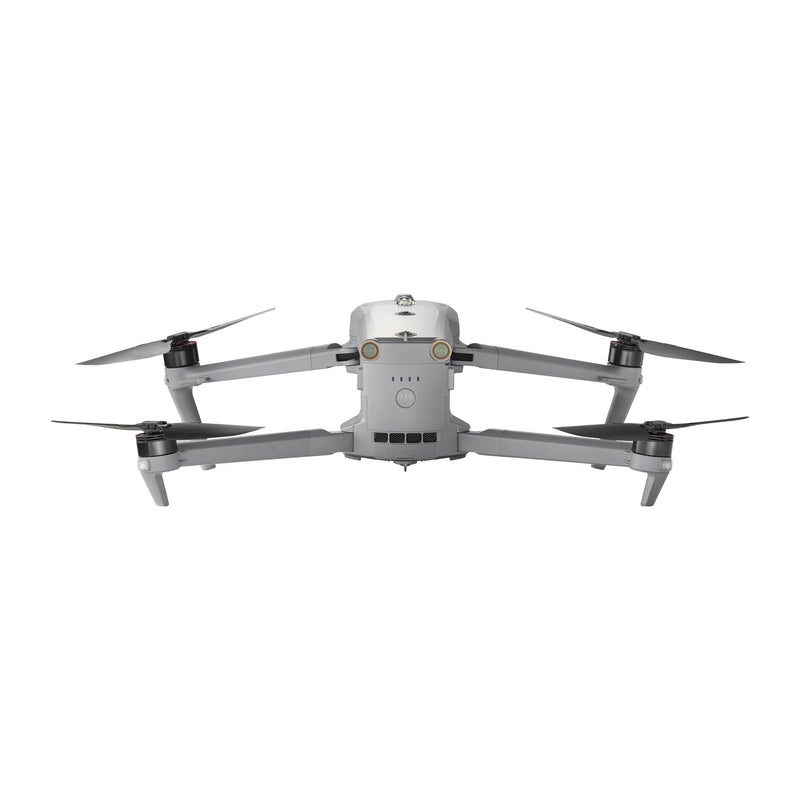

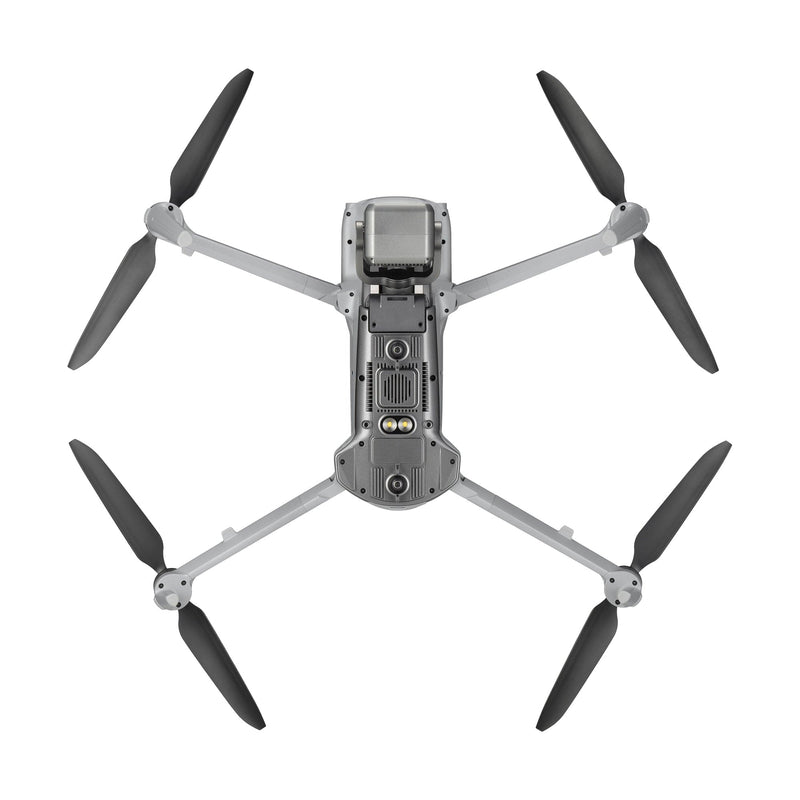

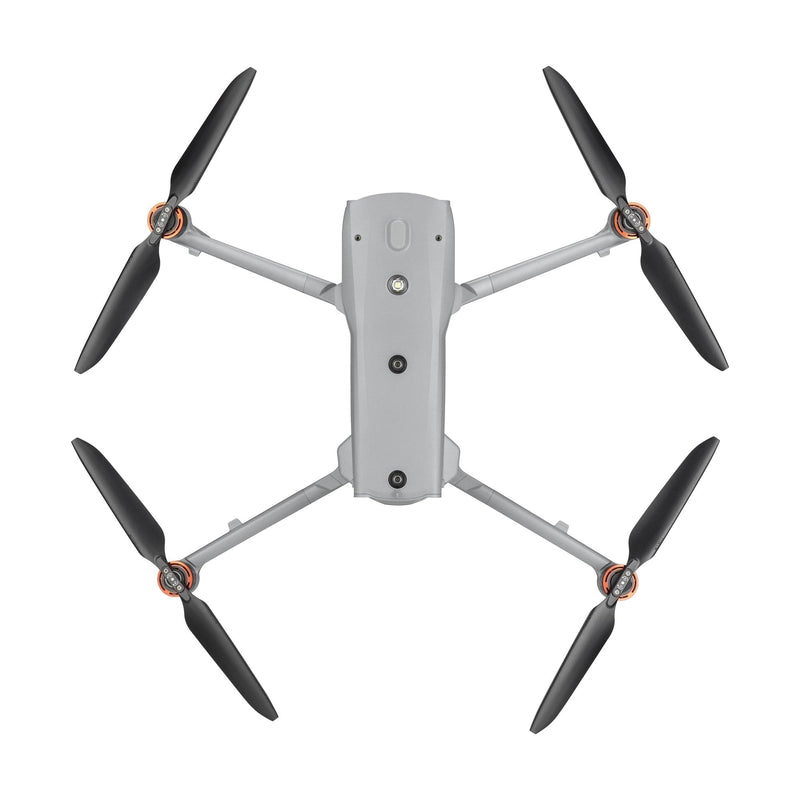

Autel EVO Max 4N - 2024 Best Night Vision Drone

Armed with 720-degree obstacle avoidance and A-Mesh 1.0 networking support, the EVO Max Series is the next generation of intelligent, agile drones. The EVO Max 4N represents a night-ops-ready entry into the series, equipped with its starlight night vision, zoom and thermal cameras, as well as full laser ranging capabilities. With its exceptional starlight camera, the drone can operate in lighting conditions as low as 0.0001 Lux, bringing unparalleled performance in the dark. Night surveys, emergency responses, and more - all possible with the EVO Max 4N.

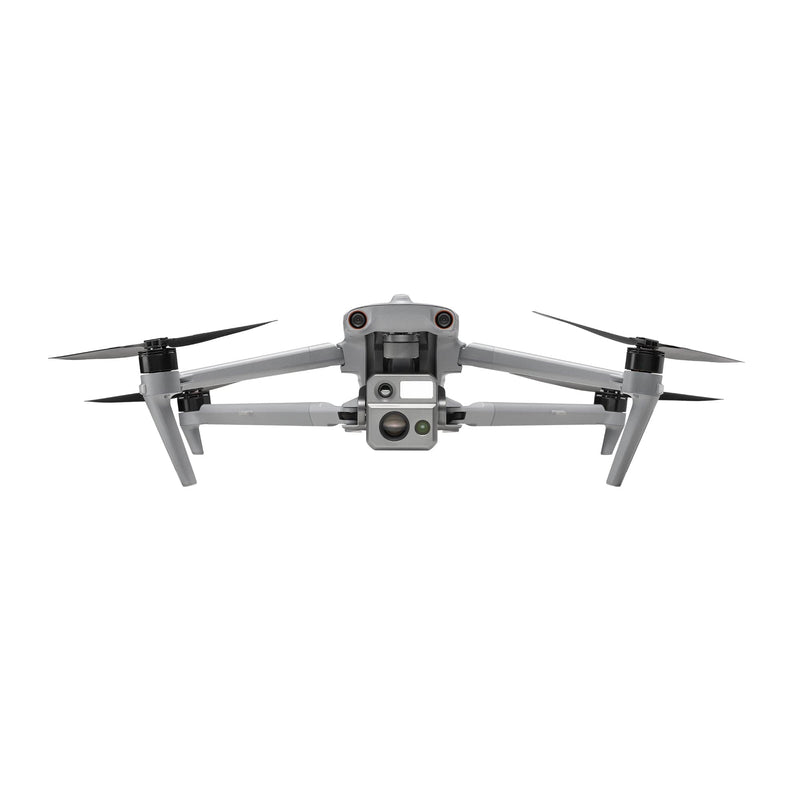

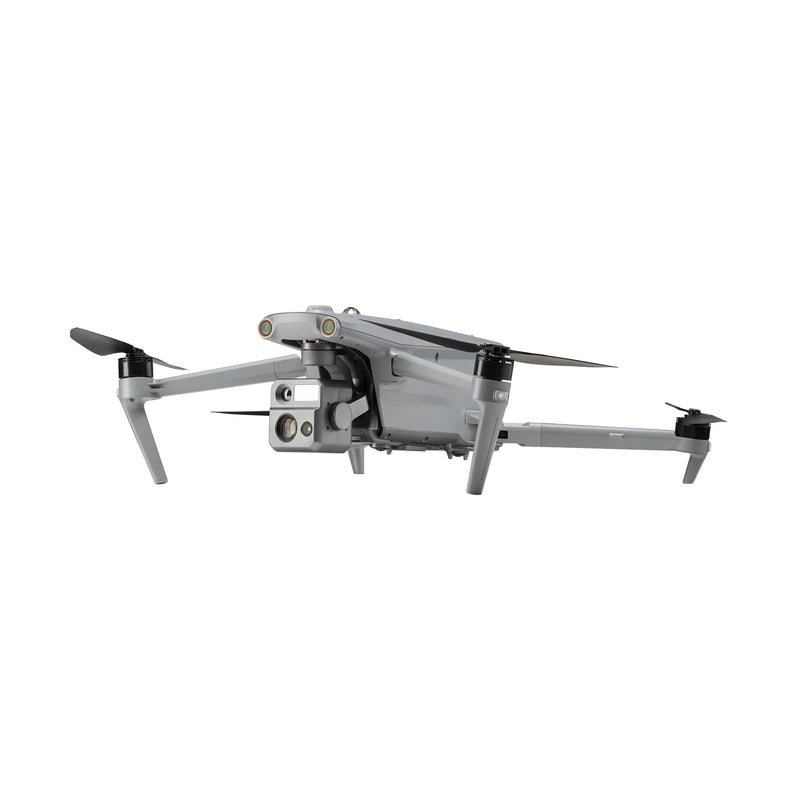

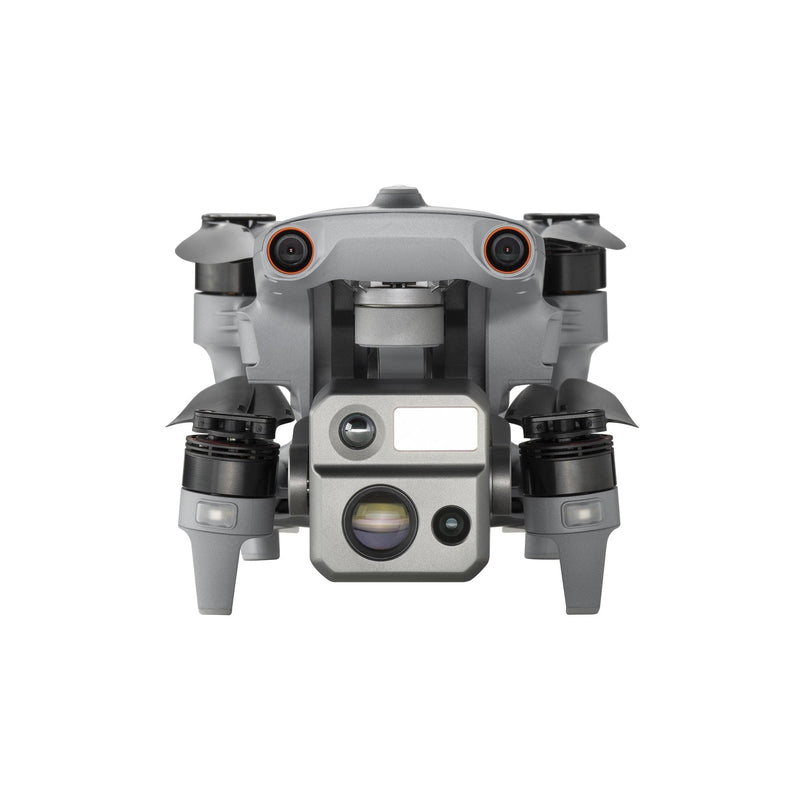

Hybrid Sensor Payload

 The EVO Max 4N payload integrates wide-angle, starlight and thermal camera with a laser rangefinder for all data capture needs and critical decision making.

Starlight Camera
With an impressive 0.0001 LUX and ISO ranges from 100-450,000, it has the ability to lock and track targets at night. This camera is the ultimate tool to explore the night.

Laser Rangefinder
Tap a target to get the coordinates and altitude rapidly from up to 0.75 miles away.

Thermal Camera
Equipped with 640x512 high-resolution radiometric thermal imaging camera, 30fps and 16x digital zoom.

Wide Camera
Autel's Moonlight Algorithm 2.0 boosts post processing and allows the pilot to capture crisp, detailed images in low-light environments.
Video: support 4K 30fps, max ISO 64000.
Photo: Moonlight mode reduces noise and enhances HDR.

A Leader in Drone Intelligence

The EVO Max 4N comes equipped with a wide array of features and capabilities that range from Autonomous Path Finding, Navigation in GPS Denied Environments, and Accurate Object Identification and Tracking.

Autonomous Path Finding
Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

Navigation In GPS Denied Environments
Advanced sensors allow the EVO Max 4N to navigate within hardened structures, underground, or in environments without GPS.

Accurate Object Identification And Tracking
Based on Autel's AI recognition technology, the EVO Max 4N can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement personnel.

No Blind Spots

Ultimate Obstacle Avoidance

EVO Max 4N is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4N's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.

Anti Jam, Anti Interference

The EVO Max 4N uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4N to fly confidently near power lines, critical structures, and in complex areas.

Weather Rating-IP43

The EVO Max 4N has an IP43 Ingress Protection rating, which means that it is protected against solid objects greater than 1mm in diameter and against sprays of water up to 60 degrees from the vertical. This makes the drone more durable and able to withstand challenging weather conditions, making it ideal for use in a wide range of applications.

Platform Capability

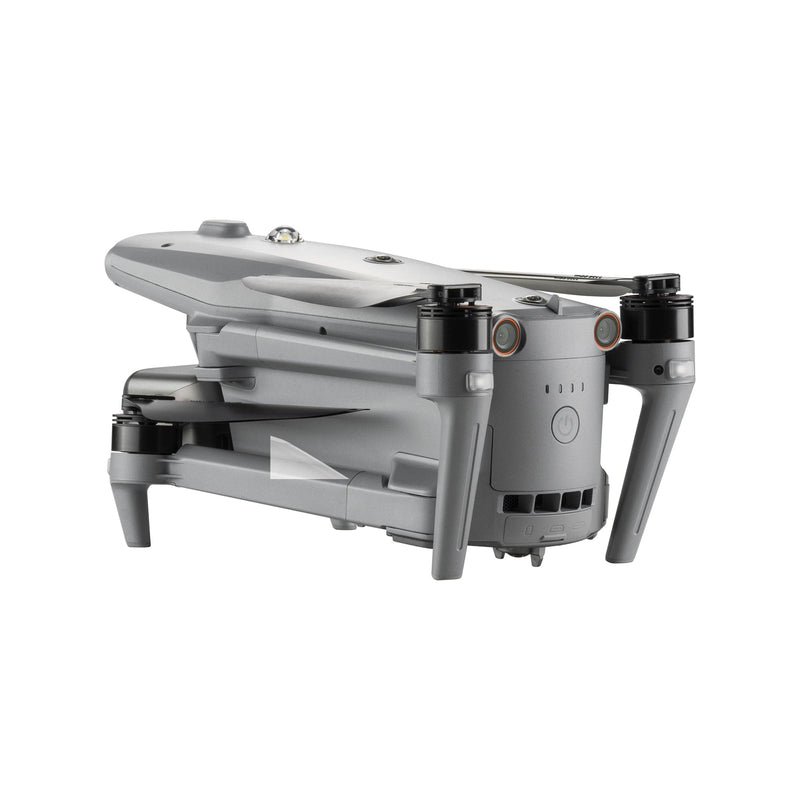

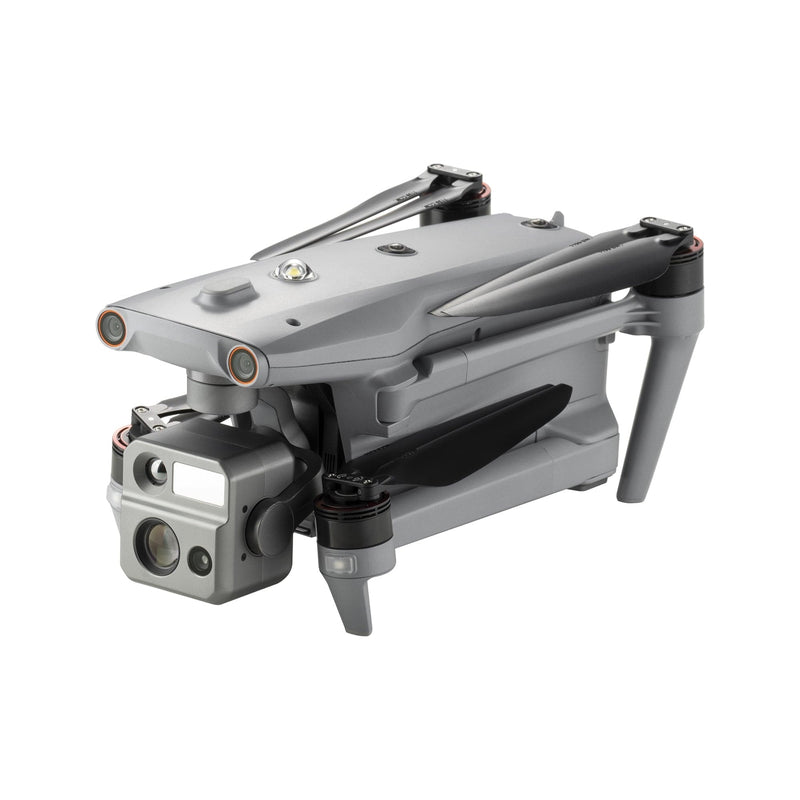

EVO Max 4N redefines portability with its powerful platform and all weather design.

It comes equipped with the following features and capabilities:

• 42 Minutes of Maximum Flight Time
• IP43 Ingress Protection Rating
• 27 mph Maximum Wind Resistance
• 23,000ft Service Ceiling
• 12.4 Mile Transmission Range

*Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).

Hot-Swappable Battery

Autel Max 4N hot-swappable battery system, which allows for extended flight times without the need for downtime. This system allows users to easily swap out batteries while the drone is still in operation, making it ideal for use in time-critical applications where every second counts.

A-Mesh 1.0

The Drone Industry's First Mesh Networking Technology

EVO Max 4N features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.

The EVO Max 4N features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration for seamless enterprise operations.

Strong Anti-Interference
The EVO Max 4N can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.

Beyond-Line-of-Sight Applications
With A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.

Full-Fleet Control
Multiple drones can be controlled autonomously by one pilot or by a group of pilots simultaneously with or without LTE coverage.

Enhanced Range
Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.

Autel SkyLink 3.0

The EVO Max 4N SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.

• 12.4 Mile Image Transmission Range
• 1080p/60fps Real-Time Image Quality
• 900MHz/2.4GHz/5.2GHz/5.8GHz Frequency Bands**
• <150ms Latency

*This feature will be available in a future update.
**5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.

Autel Enterprise App Platform

The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4N's mission capability.

Smart Features

The EVO Max 4N comes equipped with the following intelligent features that were tailored for commercial end users:

3D Map Planning
Plan, create, and execute 3D waypoint mission plans on a 3D map.

Mission Reproduction*
Fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max 4N will automatically record the camera angles and replicate the mission you just flew.

Quick Mission*
Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.

Multiple Mission Types

The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.

 Waypoint Missions
Users can add waypoints for flexible, non-structured flight paths.

Rectangular Mission
Supports one-click automatic generation of a rectangular flight area.

Automatic Mission (Generation And Data Capture*)
Automatically produce routes by adding regional boundary points through dots or importing KML files.

 Terrain Follow*
Maintain relatively constant altitude from the ground for uneven or sloped terrain.

Oblique Photography
Automatically plan 5 groups of routes (1 ortho + 4 oblique) according to the flight area set by the user.

Spiral Mission*
Supports helical flight search in a designated area for SAR.

Polygon Mission
Supports one-click automatic generation of polygon flight areas.

Vertical Scan*
Perform vertical surveys for building facades, open pit walls, and towers.

Corridor Mission*
Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow, large-scale terrain.

*This feature will be available in a future update.

Data Security

 Featuring AES 128/256 storage, radio link and network encryption for operational security.

Privacy Protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.

Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.

Enhanced Live-View

Multi-channel Projection Screen*
Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.

AR Scene*
Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for users to confirm the drone's location and avoid airborne risks.

*This feature will be available in a future update.

Complete Remote Operations System

Used with the EVO Nest, the EVO Max series supports all-weather auto piloting for scenarios such as substations, industrial parks, and rooftops.

Autel SDK

The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.

Mobile SDK
Open UX SDK (iOS & Android) can directly call up the ready-made interactive interface.

Payload SDK*
Unified interface standards support access to third-party mounts such as microphones and gas detectors.

Cloud SDK*
Enables remote live broadcast and control of drones and Nests through third-party platforms or web pages.

Application

The Autel EVO Max 4N was designed for survey and inspections, search and rescue operations, public safety, and many other commercial applications.
