10% OFF at Checkout Autel Robotics EVO II Dual 640T RTK Rugged Bundle [V3]

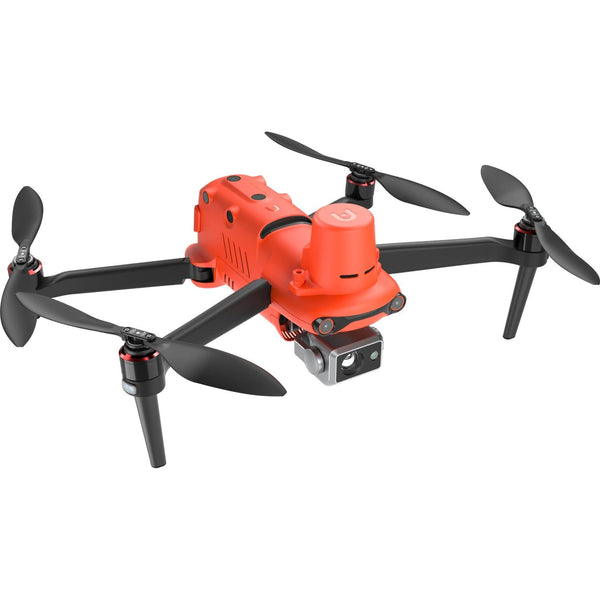

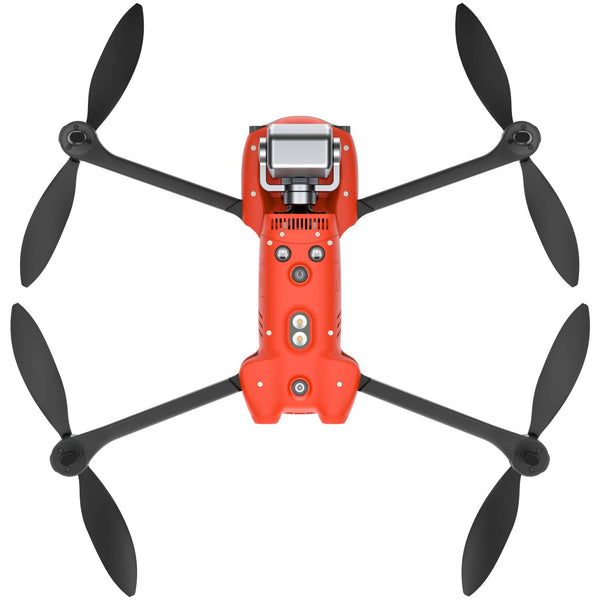

Autel Robotics EVO II Dual 640T RTK V3

The EVO II Dual 640T RTK V3 features 2 cameras that give you the ability to carry out different kinds of missions with just one powerful drone. Whether it’s casual overhead photography, area surveying, line inspection, locating of hotspots, search and rescue, or crowd monitoring, this drone has got you covered.

EVO II Dual 640T V3 Top Highlights

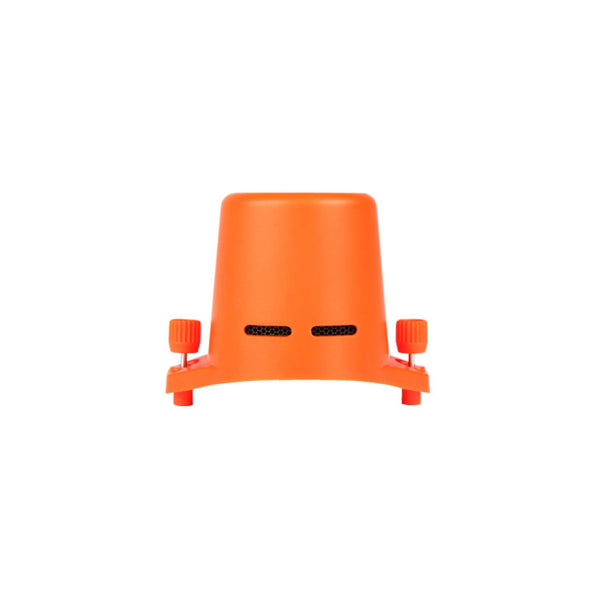

Autel EVO II Dual 640T RTK Module

Centimeter-Level Positioning System

The EVO II RTK series integrates an entirely new RTK module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The EVO II 640T RTK V3 aircraft can record the original satellite observation data, camera exposure parameters and various other data. The positioning system supports A-RTK base station and RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.

Mission Execution With Advanced Intelligence

EVO II RTK Series aircraft offer users a full range of intelligent features and solutions to suit a variety of mission needs. Using advanced flight control and the latest AI technology, the aircraft can significantly improve mission work flows and help reduce operating costs.

Creating Mission, Waypoint Flying, 720° Omnidirectional sensing & Obstacle avoidance, Photo Replication, No Need Ground Control Points, High Precision RTK/ PPK Positioning, Support A-RTK High Precision GNSS Base Station.

No Need for Ground Control Points

The EVO II RTK Series leverages a high precision RTK module, supports PPK and time synchronization, and is not limited by communication links or network coverage.

RTK High-precision GNSS Base Station

RTK / PPK

The EVO II RTK Series supports third party base stations with NTRIP capability.

RTK High-precision GNSS Base Station

The EVO II RTK Series supports RTK high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point.

Autel Explorer for Mapping

Create Rectangular or Polygon Missions Non stop turning on corners Supports Double grid mapping for additional angles

Multi-NTRIP Profile Saving：For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

Photo Replication : For repeatable missions, you can record the drone's previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.

Multi-Battery Missions : The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don't have to manually input new a flight plan for every new location.

640x512 30Hz New Thermal Imaging Sensor

Equipped with 640*512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than competition with the similar resolution and hardware.

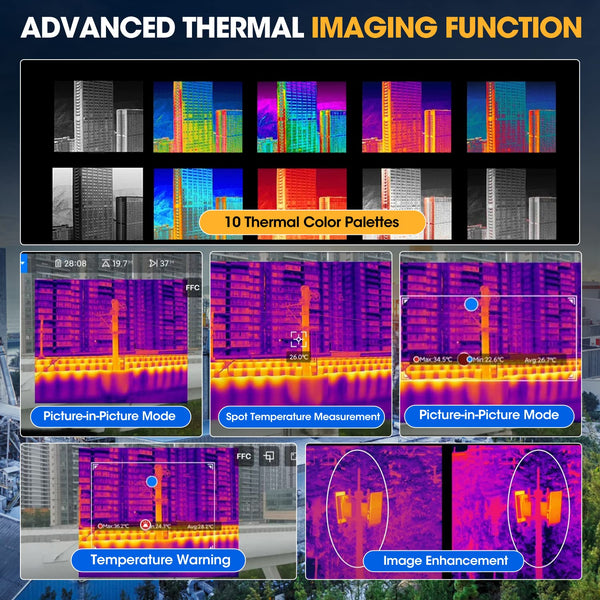

Multiple Color Modes

10 Color Schemes for More Vivid Scene Recognition

DRI Ranges

DRI stands for Detection, Recognition and Identification.

 1）Detection: Detect if an object is present

 2）Recognition: See what type of object it is (i.e. person, vehicle, airplane)

 3）Identification: Determine subject affiliation and intent.

Capture And Preserve Even The Smallest Of Details

50-MP ultra-sensitive visual camera

The visual camera installed in the drone features a unique RYYB sensor with Moonlight Algorithm 2.0. This improves the camera's 50 megapixels by giving users more information for better forensics and analysis even in low-light situations.

In low light, it is possible to detect, recognize, and categorize individuals and proceed with confidence. And with a mix of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for quick and precise tracking, you'll never lose sight of your targets.

With the aid of a combination of visual and thermal images captured by these dual cameras, you can swiftly understand data and make important decisions.

0.8" RYYB CMOS Sensor

Equipped with a .8" RYYB CMOS sensor, featuring moonlight algorithm 2.0 that provides excellent noise suppression in limited lighting conditions, further enhancing its 50 megapixel camera to give users more details for better forensics and analysis. Detect, identify, classify subjects in low light situations and proceed with certainty.

4x Lossless Zoom

The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4K without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.

4K HDR For Greater Dynamic Range

4K HDR video adds dynamic range by merging long-, medium-, and short-term exposures into a single frame. 10-bit color depth captures over 1 billion colors to provide greater flexibility in post production while still retaining rich details in the shadows and highlights.

360° Obstacle Avoidance

Autel Robotics EVO II Dual 640T V3 is equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.

EVO II - AI Enhanced Dynamic Track

EVO II Dual smart tracking uses deep learning algorithms to automatically track the selected subject while avoiding obstacles during flight. The function can track the subject in three modes: behind, side-by-side, or fixed position.

Auto go home & Accurate Landing

EVO II Dual 640T V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.

Autel Smart Controller V3

Smart Controller V3's 7.9-inch, 2000nits high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9.3 miles (15km) away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

Autel Live Deck 2

The Autel EVO 2 Dual 640T V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.The Live Deck 2 features:
1）1080P/60FPS Video Stream Capability
2） Three Auto-Switch Bands
3）7.45 mile (12 km) Transmission Range
4）5-Hour Battery Life
5）IP43 Resistance

Powerful Infrared Thermal Analysis Tool(IRPC)

This free temperature measurement analysis tool is developed for the 640T V3, and enables users to quickly import images, edit and analyze temperature measurement, and to generate detailed reports for sharing and coolaboration.(Select the "Word" icon Export report. Generate analysis report)

All Cameras interchangeable

Autel EVO II Series Dones is one aircraft with three camera options. All cameras for EVO II can be purchased separately and are interchangeable!

Industry Leading Performance

The EVO II Dual 640T V3's flight performance has been fully optimized thanks to its new power system and carbon fiber structural design. Equipped with an industry-leading dual-frequency image transmission system, the unit also provides stronger anti-interference capabilities and stable transmission of high-definition images up to 1080p.

38Min Max Flight Time 45mph(20m/s) Max Flight Speed

9.3miles(15km) Max Transmission Range 2lbs(920g) Max Lift Capability

39mph(17m/s) Max Wind Resistance

EVO II Dual 640T [V3] - Wide Application

EVO II Dual 640T [V3] in Police Use

An Autel EVO II Dual thermal drone saved the day for a Nevada sheriff’s department when a suspect fleeing into the cover of darkness could be located because of his “heat signature.” While one suspect was apprehended pretty quickly, the other fled the scene on foot into the night.Typically, when that happens, the person running gets away because there’s not a great way to maintain visuals in the dark. However, Greenhut used the EVO II’s thermal camera to explore the area until he found the suspect attempting to hide behind a tree. Greenhut locked the drone’s sight in on the man until backup arrived to arrest him.

EVO II Dual 640T [V3] In Industrial Inspection

The EVO II 640T uses a visual spectrum sensor and a 640*512 radiometric thermal sensor, giving inspectors the ability to perform multiple roof inspections in half the time it takes by conventional methods. Our drone kits will not only allow you to visually inspect the entire building , but also use thermal technology to check for hot spots. This enables you to safely and quickly check the status of the structure. As well as to help you identify defects, leakage, and corrosion issues, without having to spend on additional personnel and equipment.

EVO II Dual 640T [V3] In Search and Rescue operations

Autel EVO II 640T Thermal Drone is a versatile and reliable tool for search and rescue operations. With its high-resolution thermal imaging camera, long flight time, and accurate positioning capabilities, this drone is designed to assist search and rescue teams in finding and rescuing victims in a timely and effective manner.

EVO II Dual 640T [V3] In Wildlife Management

Maximize your livestock protection with the advanced thermal imaging capabilities of the Autel 640T drone. As a leading solution in the industry, the EVO II Dual 640T provides peace of mind for farm owners by detecting potential threats, such as predators, that could cause harm to farm animals. With its thermal imaging technology, even the most elusive creatures, like Wild Boar, can be easily located and counted. This reliable and effective tool ensures the safety and security of your livestock, making the Autel EVO II Dual 640T an indispensable asset for any farm owner.

EVO II Dual 640T [V3] In Residential Roof Inspection

Inspect and document the exterior condition of shingle, tile, or slate roof structures with ease using the high-resolution visible imaging capabilities of the Autel EVO II Dual 640T drone. Utilizing unmanned aerial vehicle (UAV) technology, this drone provides a detailed view of the roof, allowing you to easily observe hail damage, wind damage, openings in the roof, cracked tiles, and much more. When water gets on the surface of the membrane, it creates a higher temperature that can be easily detected using the infrared imaging capabilities of the Autel 640T. This versatile tool makes roof inspections quicker, safer, and more efficient, delivering reliable results every time.

EVO II Dual 640T [V3] In Legal Hunting

The EVO II Dual 640T V3 is a highly advanced drone that can greatly assist hunters in their pursuits. With a dual 640T thermal camera and high-resolution imaging capabilities, hunters can locate and track game from the air. The drone's long flight time and stable flight performance also allow for extended monitoring and observation of wildlife. This cutting-edge technology can help hunters plan and execute successful hunting trips, increasing their chances of making a successful catch.
