Things about Mercedes Key Programming with Autel Programmer

Programming a key in a Mercedes-Benz vehicle using the Autel Key Programmer involves several steps. The exact procedure can vary slightly depending on the model and the specific Autel key programmer you're using, but the general steps are as follows:



Preparation:

Check Compatibility:

Before starting, make sure your Autel Key Programmer is compatible with the specific Mercedes-Benz model you are working with. Autel supports a broad range of vehicles, but verifying compatibility is always a good idea.



Obtain a New Key:

Ensure that the new key (or replacement key) you’re programming is compatible with the vehicle. Typically, Mercedes-Benz uses smart keys, which must be programmed to the vehicle's ECU.



Make Sure the Vehicle Battery is Charged:

The vehicle should have a sufficiently charged battery to prevent power loss during the key programming process, which could cause errors or interruptions.



Have the Original Key (if available):

If you still have the original key, it will be needed for some programming procedures.



Process:

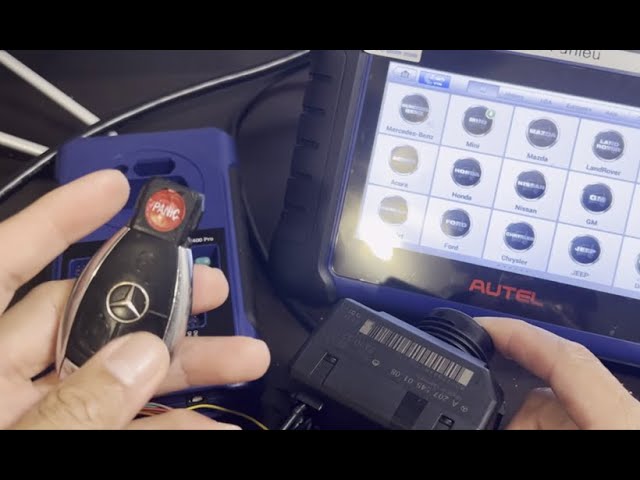

1. Connect the Autel Key Programmer:

Plug the Autel Key Programmer into the vehicle's OBD-II port

Turn the vehicle’s ignition to the "ON" position (do not start the engine).



2. Enter the Key Programming Menu:

Once the vehicle is identified, navigate to the "Key Programming" or "Immobilizer". For most Autel tools like the IM508 or IM608, the process involves accessing the "IMMO" (Immobilizer) function to program new or replacement keys.



3. Perform the Key Programming:

The tool will guide you through the process of programming the key. This typically involves:

• Deleting any old keys (if necessary).
• Programming the New Key: Insert the new key into the ignition (or place it in the key reader if it's a smart key) and follow the instructions on the Autel tool.
• Learning the Key: The Autel tool will send the key's unique data (transponder or smart key data) to the vehicle’s ECU to sync the new key.



4. Verify the Programming:

After programming, the Autel Key Programmer will typically show a success message if the process is successful.



5. Reprogram Other Keys (if needed)



Notice:

Always follow the instructions provided on the Autel tool, as each model of Autel key programmers (like IM508, IM608, or MK808) may have slightly different menus and options.



Potential Issues:

When performing key programming on a Mercedes-Benz using an Autel Key Programmer, several potential issues may arise due to vehicle-specific factors, key compatibility, or tool-related settings. Below I have summarized some common problems that users may encounter.

1. Key Programming Failure

Cause: This is often due to issues with the communication between the Autel key programmer and the vehicle’s ECU or immobilizer.

Solution:

• Ensure the OBD-II connection is secure.
• Check that the vehicle’s battery voltage is sufficiently charged. Low battery voltage can cause the programming process to fail.
• Verify that the Autel Key Programmer software is up to date, as newer Mercedes-Benz models may require updated software.



 2. PIN Code Issues

Cause: The PIN code required for key programming is incorrect or unavailable. Mercedes-Benz models require a 4-digit security PIN to program new keys.

Solution: If you don’t have the PIN code, some Autel key programmers (like the IM608) can retrieve it directly from the ECU or the key data stored in the vehicle.



3. Key Compatibility Issues

Cause: The replacement key may not be compatible with the Mercedes-Benz model in question. For example, newer models may use advanced smart key systems, and older keys may not be able to communicate with them.

Solution:

• Verify that the key you're attempting to program is genuine or compatible with the specific Mercedes-Benz model and year.
• Some Autel key programmers support key cloning. If the key is an aftermarket one, ensure it’s been properly cloned or programmed to match the vehicle’s system.



4. Fault Codes and DTCs  Preventing Key Programming

Cause: There could be existing fault codes in the vehicle's ECU or immobilizer system that prevent new keys from being programmed.

Solution:

• Use the Autel key programmer to read and clear any DTCs or fault codes before attempting the key programming again.
• Clear any errors related to the immobilizer, security, or ECU systems.



5. Key Programming for Multiple Keys

Cause: If multiple keys are programmed at once, the vehicle may have a limit on how many keys can be stored in its memory.

Solution:

• Ensure that you’re not exceeding the maximum number of keys allowed for that particular model. Typically, Mercedes-Benz systems allow 3 to 5 keys to be programmed at once.
• If necessary, delete old or unused keys from the system before adding new ones.



Final Notes:

By understanding these potential issues and solutions, you can troubleshoot and resolve common problems when performing key programming on a Mercedes-Benz using the Autel Key Programmer.

Consult the Autel Manual: If you encounter persistent issues, refer to the Autel user manual or contact their technical support for troubleshooting assistance.
