GM J2534 programming with Autel MaxiFlash Elite

Preparation

  • Laptop (Windows system)
  • Autel MaxiFlash Elite
  • AC/DC Adapter (12V)
  • Main cable
  • USB Cable
  • Internet
  • CD with the device driver program
  • Your GM car

1. J2534 ECU Programming Tool Driver Setup

For the Pass-Thru Device to operate correctly with the re-flashing and diagnostic applications on the target PC, you will need to first install the MaxiFlash Elite J2534 device driver onto the PC that will control the device.

1) Insert the driver installation CD to your PC and open the CD folder.

2) Double-click on the “Autel Run.exe” item.

3) Click the MaxiFlash Elite icon on the MaxiSys PC Suite screen.

4) Select the installation language and the installation wizard will load momentarily.

5) Follow the wizard instructions on the screen and click “Next” to continue.

setup1
6) Click on “Install” and the driver program will be installed onto your PC.

 setup2

7) When the driver is successfully installed, a confirm window will appear. Click on “Finish” to complete the whole installation procedure.

setup3

2. J2534 ECU Programming Software Update

This function allows you to update the driver software for the Pass-Thru device through the PC. Make sure the PC is connected to the Internet before using this function.

1) Power up the device by the external power supply; verify the green Power LED on the front panel is on.

2) Connect the Pass-Thru device to the PC with the supplied USB cable; verify the green Connection LED on the front panel is on.

3) From Windows Start Menu, find and double click the “MaxiFlash Elite” icon, and wait for the program interface to pop up.

update

4) The update agent will automatically check for the available update online.

5) Press the “Next” button to install the newest firmware.

6) Press the “Cancel” button to exit.

3. Reprogramming With J2534 Device

To reprogram vehicles using OEM software, you can find a list below of websites that offer subscription software, or visit https://www.acdelcotds.com/ website to find out more about ECU re-flash applications from the OEMs.

Using the additional OEM software, the MaxiFlash Elite can be used as a Pass-Thru diagnostics tool as well, which allows users to read and clear Diagnostic Trouble Codes (DTCs) and data log PIDS, collect sensor data and log generic OBDII data, etc.

Since J2534 allows multiple devices to be connected at once, you must tell the software you want to use the MaxiFlash Elite. Every application will have a different way to select the device, so please consult the software manually.

programming steps

1. login

login
2. Download system requirements
Download system requirments
3. Check the requirementsRequirements
4. Download Java and Install
download java
download
5. Add VIN
add VIN
Add Vin
add VIN
add VIN
add VIN
add VIN

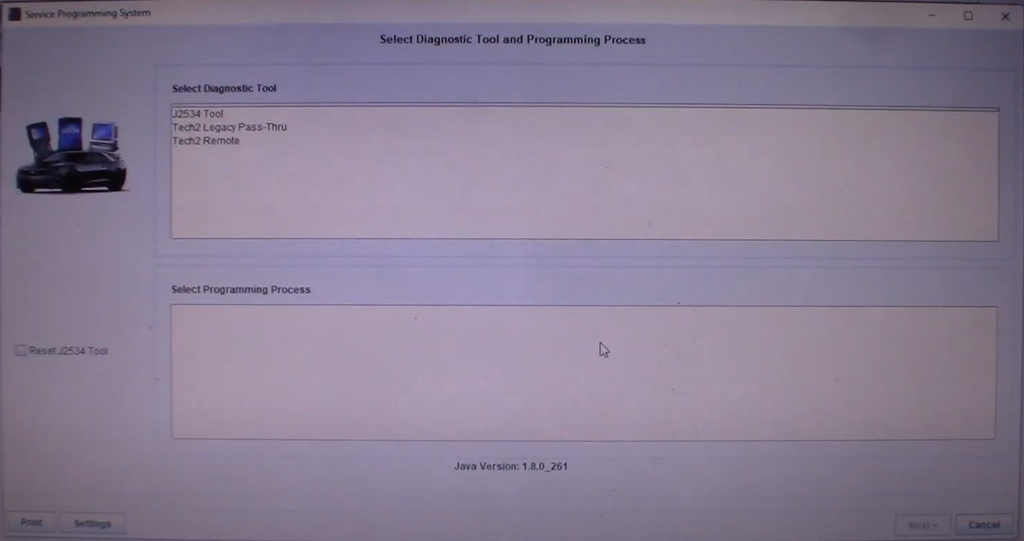

6. select diagnostic tool and programming process
select diagnostic tool and programming process
select diagnostic tool and programming process
select diagnostic tool and programming process
7. Select vehicle data
select vehicle data
8.  Validate VIN
Validate VIN
9. Select controller
select controller
10. Select vehicle data
select vehicle data
11. Find your VIN
Find your VIN
fin your VIN 2
find your VIN
12. Select vehicle data
Select vehicle data
13. Software selection for controller
software selection for controller
14. Calibration selection
Calibration selection
15. Summary
summary
16. Transfer data
Transfer data
Programming

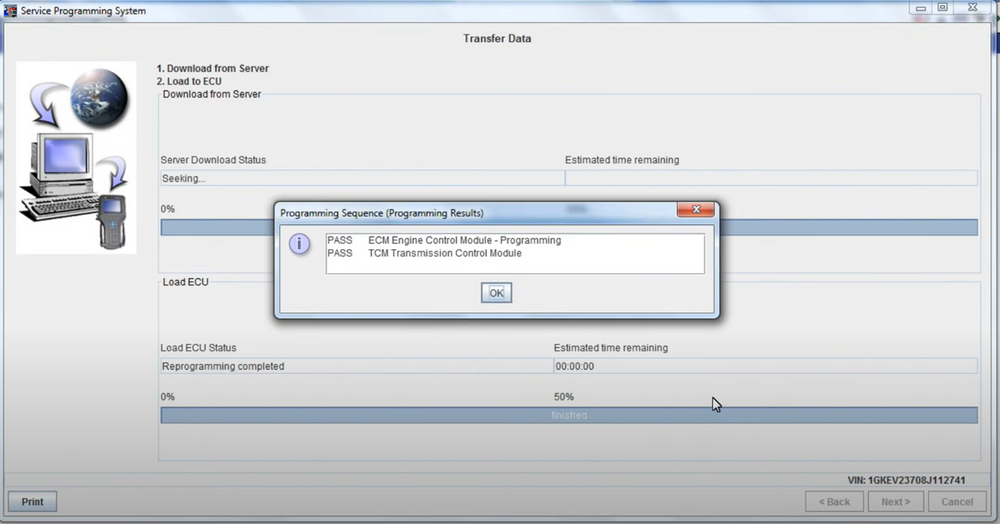

17. Programming completed
programming completed
programming completed
GM j2534 programming with Autel MaxiFlash Elite

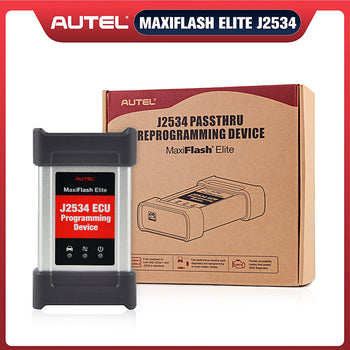

Autel MaxiFlash Elite J2534 ECU Programming Tool

As a multi-protocol Pass-Thru vehicle interface, MaxiFlash Elite is a fully compliant SAE J2534-1 & SAE J2534-2 (March 2006) device. Specially designed to provide users with convenient PC communication and ECU reprogramming capabilities on any modern vehicle diagnostic bus, MaxiFlash Elite offers the most significant features desired by OEM customers: reliability, fast performance, and flexibility.
