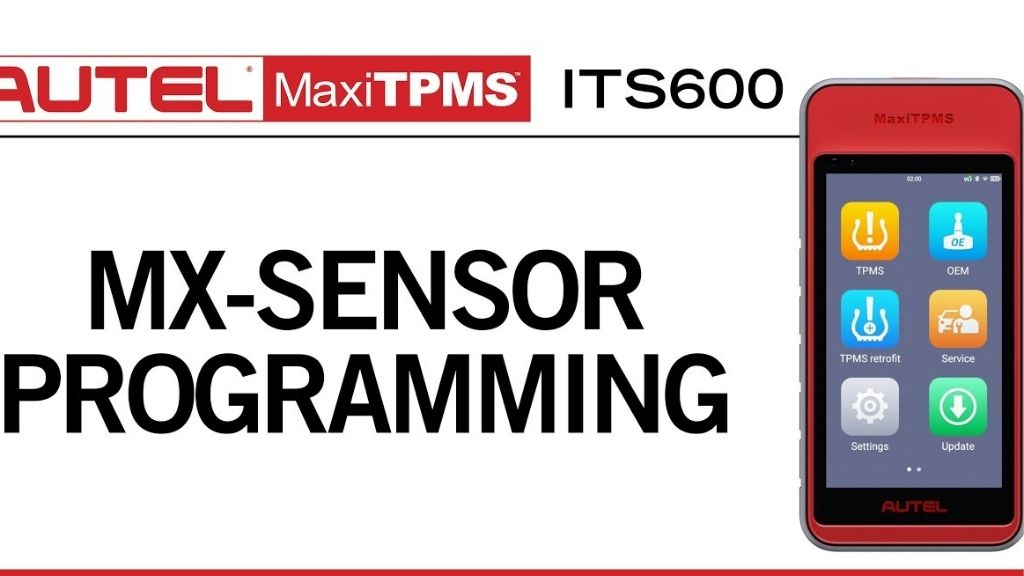

Autel MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles. The ITS600 can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tire expiration notice, and access to recall lookup. The ITS600 is compatible with TBE200/TBE100 Tire Tread & Brake Disc Wear Analysis tool, sold separately. By providing an extensive series of tire-related features and functions, ITS600 is your ideal choice to complete TPMS and tire health work.
| Recommended Use | Indoor |
| Operating System | Android™ 9.0 |
| Processor | Quad-core processor (1.5 GHz) |
| Memory | 1GB RAM DDR4 & 64GB ROM |
| Display | 5.5-inch LCD capacitive touchscreen with 1280x720 resolution |
| Connectivity | Wi-Fi, USB 2.0, USB Type C, BT |
| Sensors | Light sensor for brightness auto adjust |
| Audio input/output | Input: N/A Output: Beep |
| Power and Battery | 3.8 V/5000 mAh lithium-polymer battery Charges via 5 V AC/DC power supply |
| Battery Charging Input | 5 V/2 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V |
| Operating Temp. | -10 to 45°C(14 to 113°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”) |
| Net Weight | 368 g (0.8 lb.) |
| Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66 |
Autel ITS600 MaxiTPMS Tablet can produce detailed scan reports that even include tread depth measurement with the addition of optional accessories. The ITS600 provides the widest TPMS vehicle coverage with Autel 1-Sensor programming, Autel says.
The MaxiTPMS ITS600 is a pocket-size, lightweight, touchscreen Android tablet that performs all-known sensor activation, system diagnostics, 1-Sensor programming with 99% vehicle coverage, and sensor ID and position Relearn procedures, the company says.
