How To Use Autel MaxiIM IM508S & G-BOX 3 To Read BMW Engine Module ISN?

Autel IM508S is a powerful Key Fob Programming Tool, which comes with XP200 programmer. If you want Autel IM508S to support BMW vehicles, you also need G-Box 3 Adapter.

Here we show you how Autel MaxiIM IM508S & G-BOX 3 reads the ISN of BMW E Series Bosch TC1797 MEVD17.2.4.

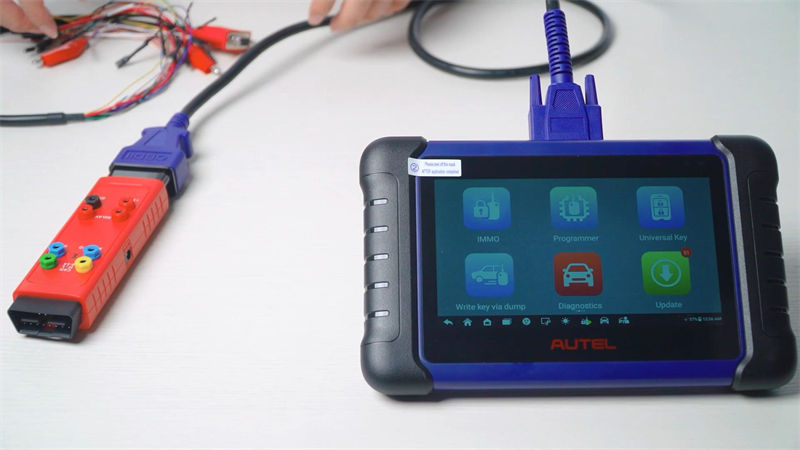

Autel MaxiIM IM508S & G-BOX 3 reads the ISN of BMW

Connect Autel IM508S, G-BOX 3 and BMW DME according to the wiring diagram:

IMMO >> ACCEPT >> BMW >> System Selection >> Engine >> Direct >> Workbench >> E Chassis >> BOSCH >> Read/Write ISN >> TC1797 MEVD17.2.4

Autel MaxiIM IM508S & G-BOX 3 reads the ISN of BMW
Autel MaxiIM IM508S & G-BOX 3 reads the ISN of BMW
Autel MaxiIM IM508S & G-BOX 3 reads the ISN of BMW
Autel MaxiIM IM508S & G-BOX 3 reads the ISN of BMW

Step:

Remove the DME from the vehicle.

Referring to the points in the diagram, connect the DB15 cable to the DME interface.

Connect DB15 cable to Autel G-BOX3. Then connect the G-BOX3's OBDII female connector (marked "P") to the IM508S diagnostic tool, and its DC port (marked "DC 12V") to the +12V DC power supply.

After this function is executed, restore the DME to its original state.

Press "OK" after the connection is completed.

Autel MaxiIM IM508S & G-BOX 3 reads the ISN of BMW
Autel MaxiIM IM508S & G-BOX 3 reads the ISN of BMW

Autel MaxiIM IM508S & G-BOX 3 reads the ISN of BMW

Read BMW DME ISN

Press "Read ISN".

During function execution, you need to pay attention to the following matters:

This process requires an internet connection. Make sure the network connection is working properly and stay connected during this process.

Do not disconnect the 12V (3A) power supply and ensure the working voltage is stable.

Do not disconnect the device from the mains cable.

Otherwise, exceptions may occur during function execution.

Press OK.

Reading data, please wait for 100%...

After data reading is completed, save the data file.

Decoding completed.

BMW ISN has been read successfully!

Autel MaxiIM IM508S & G-BOX 3 reads the ISN of BMW

Autel MaxiIM IM508S & G-BOX 3 reads the ISN of BMW
