How to choose Autel full system diagnostic tool? Active testing, advanced features, special services, what do you want from a scanner tool? Autel Maxisys Ultra, the most comprehensive advanced diagnostic scanner tool.
Here, we will compare the three best OBD2 tools for Autel scanners, Autel Maxisys Ultra vs. Autel MaxiCOM Ultra Lite S vs. Autel Maxisys Elite II Pro.
 |
 |
 |
|
| Model | Ultra | Ultra Lite/Ultra Lite S | ELite II Pro |
| Price | $3999.00USD | $2599.00USD | $20399.00USD |
| Vehicle Connection | MaxiFlash VCMI Including Latest Protocols | MaxiFlash VCI Including Latest Protocols | MaxiFlash VCI Including Latest Protocols |
| Color Screen | 12.9-Inch Touchscreen | 12.9-Inch Touchscreen | 9.7-Inch Touchscreen |
| Processor | 2.3GHz+1.7GHz octa-core | 2.3GHz+1.7GHz octa-core | 2.3GHz+1.7GHz octa-core |
| Memory/RAM | 256GB SSD/4GB RAM | 256GB SSD/4GB RAM | 128GB SSD/4GB RAM |
| Battery | 18000 mAh | 18000 mAh | 11000 mAh |
| Camera | 16MP Rear/5MP Front | 16MP Rear/5MP Front | 16MP Rear |
| Docking Station | Included | Included | Included |
| Operating System | Android 7.0 | Android 7.0 | Android 10.0 |
| Software Update | 1 Year Free | 2 Year Free | 2 Year Free |
| Supported Languages | English only | Multiple Language | Multiple Language |
| IP Limitation | No | No | No |
| Automatic Detection | Scan VIN/Auto VIN/Auto scan | Scan VIN/Auto VIN/Auto scan | Scan VIN/Auto VIN/Auto scan |
| Split screen display | View multiple | View multiple functions at once | View multiple functions at once |
| Advanced VCMI 5-in-1 device | VCl, Oscilloscope, Multimeter Waveform Generator, CAN Bus Check | / | / |
| Repair Assist | Guided procedures for DTC analysis and trouble code resolution | Guided program with DTc analysis and fault code resolution | / |
| Topology module mapping | Color Code All System Status Screonon Supported Vehicles | Color Code All System Status Screenon Supported Vehicles | / |
| Related cases | DTC troubleshooting | DTC troubleshooting | DTC troubleshooting |
| Technical Service Bulletins | Applicable to some vehicles | Applicable to some vehicles | Applicable to some vehicles |
| License plate reader | Applicable to some vehicles | Applicable to some vehicles | Applicable to some vehicles |
| Using MP408 | Yes | No | No |
| Using MV108 | Yes | Yes | Yes |
| w/ EV Box | Yes | No | No |

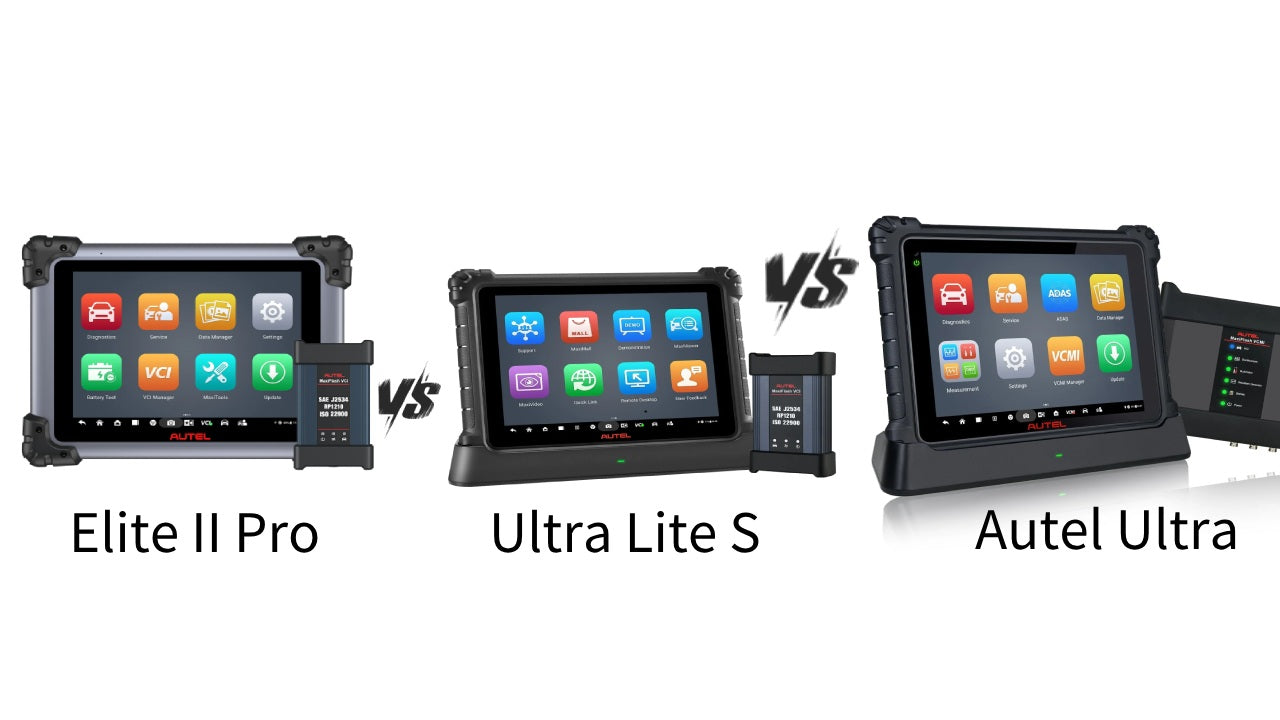

Autel Ultra vs. Autel Ultra Lite S vs. Autel Elite II Pro
Autel Maxisys Ultra and Ultra Lite have more powerful hardware. Ultra Lite and Ultra Lite S are the same model, equipped with a 12.9-inch screen, 256GB SSD + 4GB RAM, and 18000mAh battery. MS919 and MS909 are equipped with 9.7-inch screen, 128GB SSD + 4GB RAM, 15000mAh battery.
Autel Maxisys Ultra comes with MaxiFlash VCMI 5-in-1 to support VCI, oscilloscope, multimeter, waveform generator, CAN bus inspection
Autel Maxisys Ultra Lite and Autel Elite II Pro come with MaxiFlash VCI, so other accessories are needed to complete some expanded functions.
Autel Maxisys Ultra is only available in English. Cannot change to other languages. The Obdprice store also offers a global version of Autel Ultra, which supports multiple languages. Autel Ultra Lite and Elite II Pro support multi-language selection.
4. Autel Maxisys Ultra and Ultra Lite support split-screen display and include docking stations.
5. Autel Ultra Lite is not suitable for MP408, and MP408 oscilloscope has been discontinued.
